Part #: 2-1411

Part Number: 2-1411

Description:

RAV2 T100 COS

Color:

Tan

Plies:

Nominal OAG:

0.11

+/-

0.015

Fabric:

Polyester

Top Surface:

Smooth Cover (Dull Finish)

Bottom Surface:

Brushed

Compound:

RAV

Work Tension:

100

Elongation:

Less than 2%

Weight:

0.065

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

Working Temperature:

20 to 180

Max. Stocked Width:

Attributes: FDA Compliant, Oil Resistant, Sliderbed Suitable

1 of 3

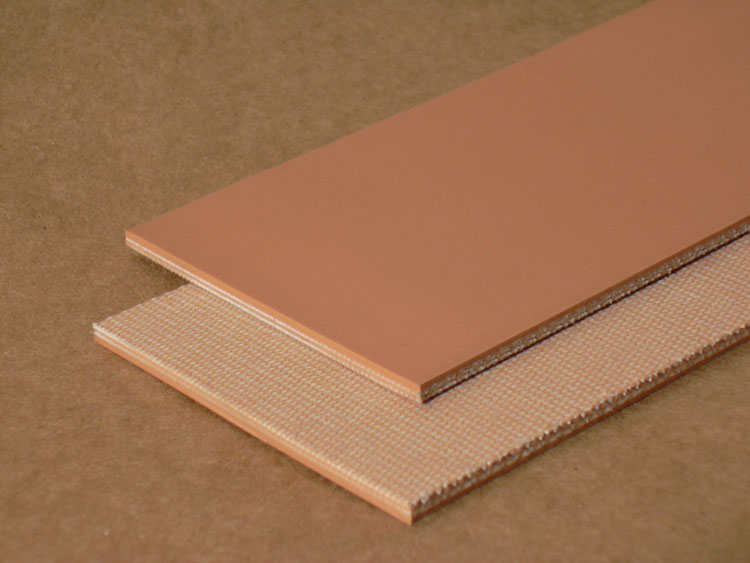

2-1411 Close Up

Features:

RAV2 T100 COS utilizes the well-known RAV compound on a low-stretch, stable polyester carcass, combining the economical advantages of PVC with the broad chemical resistance of NBR. This construction is suitable for nearly any light-duty food-processing application, delivering reliable resistance to oil, grease, and moisture. Its thermoplastic surface accepts a wide range of fabrications, making it versatile for cleats, guides, V-guides, and custom builds.

RAV2 T100 COS is especially popular in chicken-processing facilities thanks to its stain resistance and cleanability, and it performs well in environments where frequent washdowns and sanitation demands are part of daily operation.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-3	A Section Cleat - PVC	Cleat

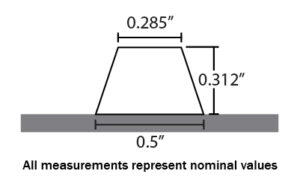

	AV-6	A Section V-Guide - RAV	V-Guide
	AVN-6	A Section V-Guide Notched - RAV	V-Guide
	BC-3	B Section Cleat - PVC	Cleat
	BC-6	B Section Cleat - RAV	Cleat

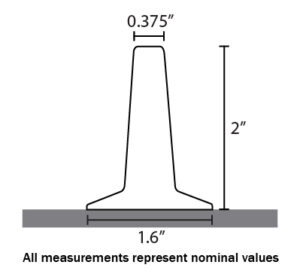

	BC2-6	2" Beefy Cleat - RAV	Cleat
	BV-6	B Section V-Guide - RAV	V-Guide

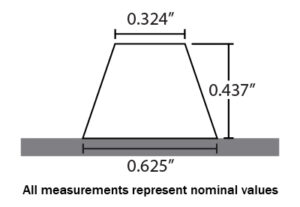

	BVN-6	B Section V-Guide Notched - RAV	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CFA2	Alligator Laced Both Ends – Cover Flap	Lacing
	CFC2	Clipper Laced Both Ends – Cover Flap	Lacing
	CFCSU2	Coated Steel Unibar Both Ends – Cover Flap	Lacing
No image	CFRP2	Plastic Rivet Laced Both Ends – Cover Flap	Lacing
	CFS2	Staple Laced Both Ends – Cover Flap	Lacing
No image	CFSL2	Spiral Laced Both Ends – Cover Flap	Lacing
	CFSS2	S/S Staple Laced Both Ends – Cover Flap	Lacing
	CFSSA2	S/S Alligator Laced Both Ends – Cover Flap	Lacing
	CFSSC2	S/S Clipper Laced Both Ends – Cover Flap	Lacing
	CFSSU2	S/S Unibar Both Ends – Cover Flap	Lacing
	CSU1	Coated Steel Unibar One End	Lacing
	CSU2	Coated Steel Unibar Both Ends	Lacing
	CV-6	C Section V-Guide - RAV	V-Guide

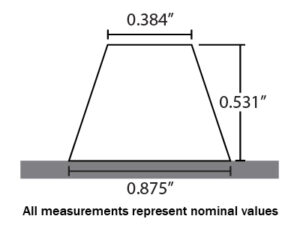

	CVN-6	C Section N-Guide Notched - RAV	V-Guide
	E-C	Endless – Finger Splice	Endless

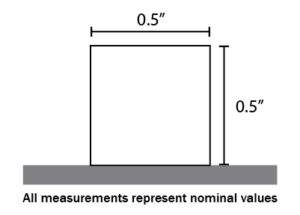

	FLG05-6	1/2" x 1/2" High Flange - RAV	Flange
	FLG1-6	1" High Flange - RAV	Flange

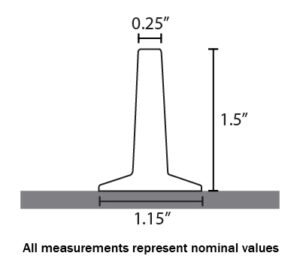

	FLG105-6	1-1/2" High Flange - RAV	Flange

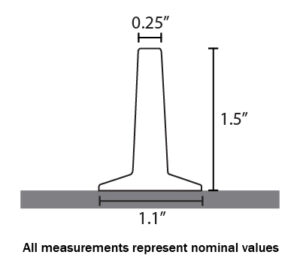

	FLG105DS-6	1-1/2" High Flange Drilled and Siped - RAV	Flange
	FLG105N-6	1-1/2" High Flange Notched - RAV	Flange
	FLG1DS-6	1" High Flange Drilled and Siped - RAV	Flange
No image	FSL2	Finger Spiral Laced Both Ends	Lacing
No image	HLA2	Alligator Laced Both Ends – Hidden Lace	Lacing
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
	HLCSU2	Coated Steel Unibar Both Ends – Hidden Lace	Lacing
No image	HLMS2	Megalloy Staple Laced Both Ends – Hidden Lace	Lacing
No image	HLS2	Staple Laced Both Ends – Hidden Lace	Lacing
No image	HLSS2	S/S Staple Laced Both Ends – Hidden Lace	Lacing
No image	HLSSA2	S/S Alligator Laced Both Ends – Hidden Lace	Lacing
No image	HLSSC2	S/S Clipper Laced Both Ends – Hidden Lace	Lacing
	HLSSU2	S/S Unibar Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	K6V-6	K6 Section V-Guide - RAV	V-Guide

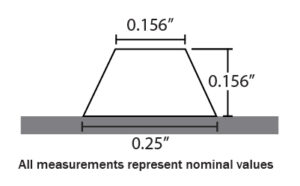

	K6VN-6	K6 Section V-Guide Notched - RAV	V-Guide
	K8V-6	K8 Section V-Guide - RAV	V-Guide
	K8VN-6	K8 Section V-Guide Notched - RAV	V-Guide
	LONG - LW	Longitudinal Splice - LW	Longitudinal
	LUG0505-6	1/2" x 1/2" Lug - RAV	Cleat

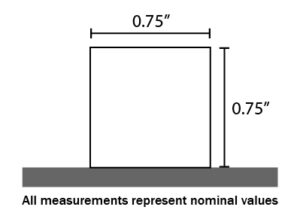

	LUG7575-6	3/4" x 3/4" Lug - RAV	Cleat
	OC-6	O Section Cleat - RAV	Cleat

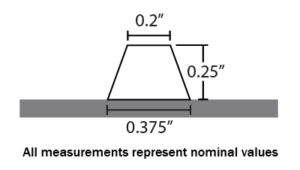

	OV-6	O Section V-Guide - RAV	V-Guide
	OVN-6	O Section V-Guide Notched - RAV	V-Guide
	P1	Plastic Rivet Laced One End	Lacing
	P2	Plastic Rivet Laced Both Ends	Lacing
No image	PE-C	Prepared Ends- Finger Splice	Endless
	Perforation	Perforation	Hole Punch
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing

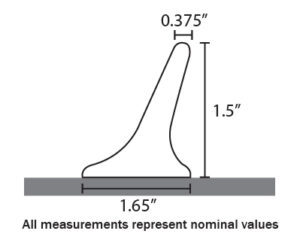

	SC105-6	1-1/2" Scoop Cleat - RAV	Cleat
No image	SC2-6	2" Scoop Cleat - RAV	Cleat

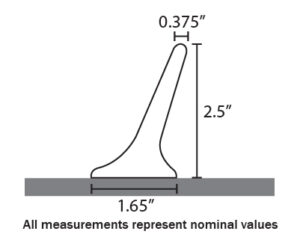

	SC205-6	2-1/2" Scoop Cleat - RAV	Cleat

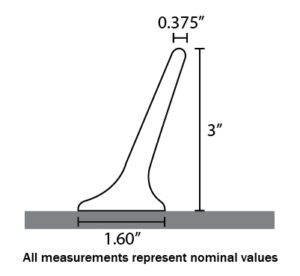

	SC3-6	3" Scoop Cleat - RAV	Cleat
	SIW410	1-3/16" Sidewall with Base - Urethane	Sidewall
	SIW415	1-9/16" Sidewall with Base - Urethane	Sidewall

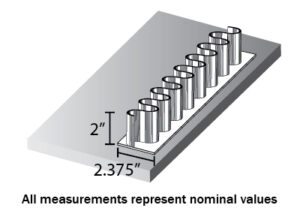

	SIW420	2" High Sidewall with Base - Urethane	Sidewall

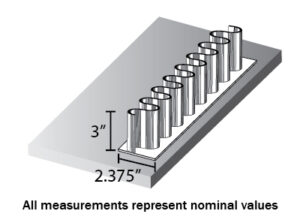

	SIW430	3" High Sidewall with Base - Urethane	Sidewall
	SL2	Spiral Laced Both Ends	Lacing
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing

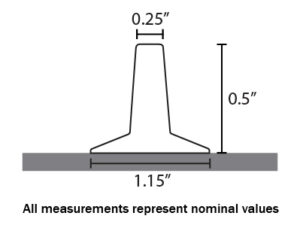

	TC05-6	1/2" Tee Cleat - RAV	Cleat

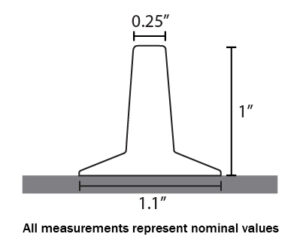

	TC1-6	1" Tee Cleat - RAV	Cleat
	TC105-6	1-1/2" Tee Cleat - RAV	Cleat

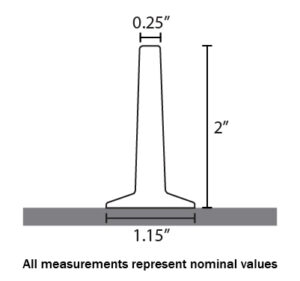

	TC2-6	2" Tee Cleat - RAV	Cleat
	TC205-6	2-1/2" Tee Cleat - RAV	Cleat

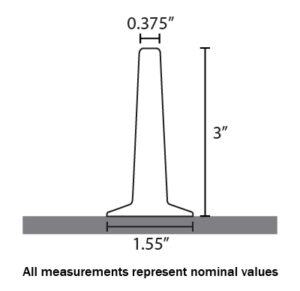

	TC3-6	3" Tee Cleat - RAV	Cleat

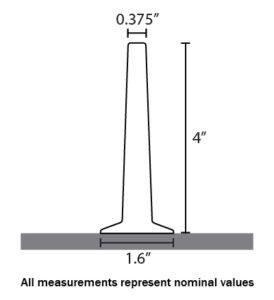

	TC4-6	4" Tee Cleat - RAV	Cleat
	TL05-6	1/2" Thin Line Cleat - RAV	Cleat

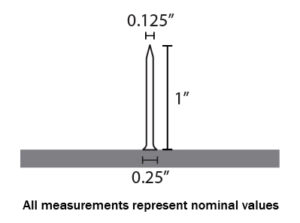

	TL1-6	1" Thin Line Cleat - RAV	Cleat

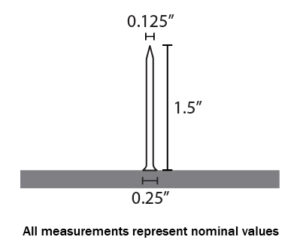

	TL105-6	1-1/2" Thin Line Cleat - RAV	Cleat

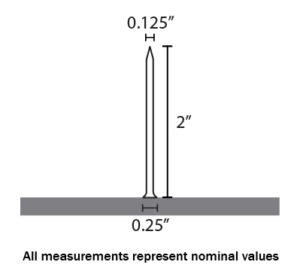

	TL2-6	2" Thin Line Cleat - RAV	Cleat

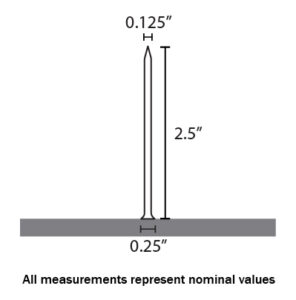

	TL205-6	2-1/2" Thin Line Cleat - RAV	Cleat
	WIB310	1" High Black Weldwall	Sidewall

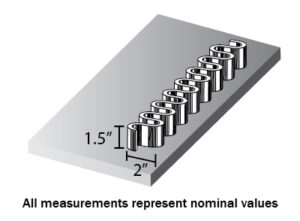

	WIB315	1-1/2" High Black Weldwall	Sidewall
	WIB320	2" High Black Weldwall	Sidewall
	WIB325	2-1/2" High Black Weldwall	Sidewall

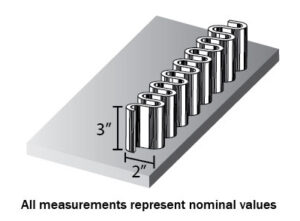

	WIB330	3" High Black Weldwall	Sidewall
	WIW310	1" High White Weldwall	Sidewall
	WIW315	1-1/2" High White Weldwall	Sidewall

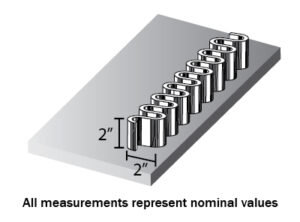

	WIW320	2" High White Weldwall	Sidewall

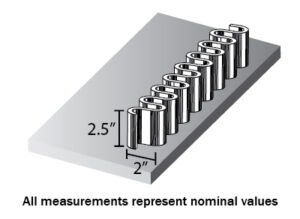

	WIW325	2-1/2" High White Weldwall	Sidewall
	WIW330	3" High White Weldwall	Sidewall
