Part #: 2-2202

Part Number: 2-2202

Description: W2000 CBS
Color : White
Plies: 1

Nominal OAG:

0.25

 +/-

0.02
Fabric:
Interwoven Polyester

Top Surface:

Smooth PVC

Bottom Surface:

Smooth Cover (Dull Finish)
Compound:
PVC
Work Tension:
200

Weight:

0.13

Minimum Pulley Diameter:

5

Back Flex Min. Pulley Diameter:

7.5

Working Temperature:

0 to 180

Max. Stocked Width:

72
Attributes: FDA Compliant, Fire Retardant, Static Conductive to < 3 x 10^8 ohms OSHA 29 CFR

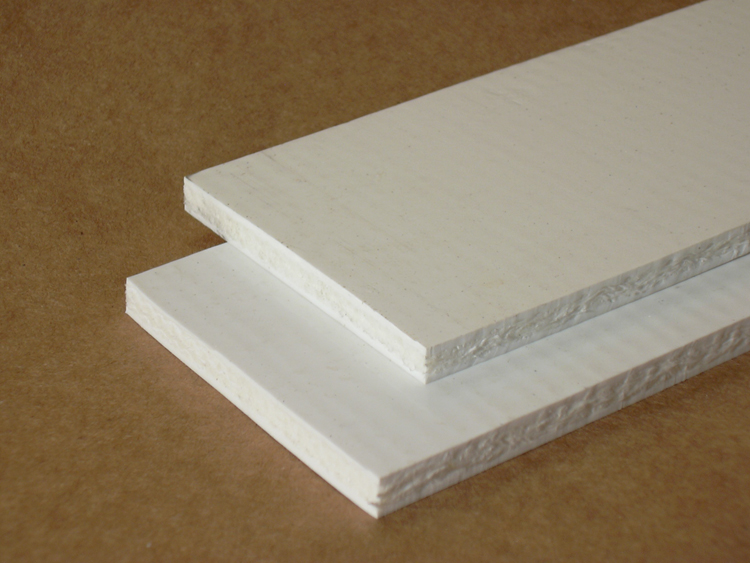

1 of 1 699_photo.jpg

Related Documents

Features:

2-2202 features a smooth oil resistant PVC cover with a tightly interwoven polyester carcass. This belt will lie flat and resist stretch. It is Oil Resistant, Fire Retardant, Static Conductive to OSHA 29 CFR and FDA compliant. Please refer to the Chemical Resistance Chart when choosing a cleaning solution. W2000 CBS can be used as a general purpose food handling belt. It can be used for light duty bucket elevators. Depending on conditions it can be used in chicken and meat applications. Do not use this belt in slider bed applications.

Fabrications for Belt Specification

Image Fabrication Description Fabrication Type
Fabrication A1 A1 Alligator Laced One End Lacing
Fabrication A2 A2 Alligator Laced Both Ends Lacing
Fabrication AC-3 AC-3 A Section Cleat - PVC Cleat
Fabrication AV-3 AV-3 A Section V-Guide - PVC V-Guide
Fabrication AVN-3 AVN-3 A Section V-Guide Notched - PVC V-Guide
Fabrication B-1 B-1 2 Hole Bucket Punch (B-1) Hole Punch
Fabrication B-2 B-2 3 Hole Bucket Punch (B-2) Hole Punch
Fabrication B-3 B-3 4 Hole Bucket Punch (B-3) Hole Punch
Fabrication B-4 B-4 5 Hole Bucket Punch (B-4) Hole Punch
Fabrication B-5 B-5 6 Hole Bucket Punch (B-5) Hole Punch
Fabrication B-6 B-6 5 Hole Bucket Punch (B-6) Hole Punch
Fabrication B-7 B-7 7 Hole Bucket Punch (B-7) Hole Punch
Fabrication B-8 B-8 9 Hole Bucket Punch (B-8) Hole Punch
Fabrication BC-3 BC-3 B Section Cleat - PVC Cleat
Fabrication BC2-3 BC2-3 2" Beefy Cleat - PVC Cleat
Fabrication BV-3 BV-3 B Section V-Guide - PVC V-Guide
Fabrication BVN-3 BVN-3 B Section V-Guide Notched - PVC V-Guide
Fabrication C1 C1 Clipper Laced One End Lacing
Fabrication C2 C2 Clipper Laced Both Ends Lacing
Fabrication CC-3 CC-3 C Section Cleat - PVC Cleat
Fabrication CV-3 CV-3 C Section V-Guide - PVC V-Guide
Fabrication CVN-3 CVN-3 C Section V-Guide Notched - PVC V-Guide
Fabrication E-H E-H Endless - Finger Splice Interwoven 2 Endless
Fabrication FLG05-3 FLG05-3 1/2" x 1/2" High Flange - PVC Flange
Fabrication FLG1-3 FLG1-3 1" High Flange - PVC Flange
Fabrication FLG105-3 FLG105-3 1-1/2" High Flange - PVC Flange
Fabrication FLG105DS-3 FLG105DS-3 1-1/2" High Flange Drilled and Siped - PVC Flange
Fabrication FLG105N-3 FLG105N-3 1-1/2" High Flange Notched - PVC Flange
Fabrication FLG1DS-3 FLG1DS-3 1" High Flange Drilled and Siped - PVC Flange
No image FR1 Flexco Rivet Laced One End Lacing
No image FR2 Flexco Rivet Laced Both Ends Lacing
Fabrication HLSSU2 HLSSU2 S/S Unibar Both Ends – Hidden Lace Lacing
No image HP Hole Punch Hole Punch
Fabrication K6V-3 K6V-3 K6 Section V-Guide - PVC V-Guide
Fabrication K6VN-3 K6VN-3 K6 Section V-Guide Notched - PVC V-Guide
Fabrication K8V-3 K8V-3 K8 Section V-Guide - PVC V-Guide
Fabrication K8VN-3 K8VN-3 K8 Section V-Guide Notched - PVC V-Guide
Fabrication LUG0505-3 LUG0505-3 1/2" x 1/2" Lug - PVC Cleat
Fabrication LUG7575-3 LUG7575-3 3/4" x 3/4" Lug - PVC Cleat
No image MS1 Megalloy Staple Laced One End Lacing
No image MS2 Megalloy Staple Laced Both Ends Lacing
Fabrication OC-3 OC-3 O Section Cleat - PVC Cleat
Fabrication OV-3 OV-3 O Section V-Guide - PVC V-Guide
Fabrication OVN-3 OVN-3 O Section V-Guide Notched - PVC V-Guide
Fabrication P-1 P-1 2 Hole Bucket Punch (P-1) Hole Punch
Fabrication P-2 P-2 3 Hole Bucket Punch (P-2) Hole Punch
Fabrication P-3 P-3 4 Hole Bucket Punch (P-3) Hole Punch
Fabrication P-4 P-4 5 Hole Bucket Punch (P-4) Hole Punch
Fabrication P-5 P-5 6 Hole Bucket Punch (P-5) Hole Punch
Fabrication P-7 P-7 5 Hole Bucket Punch (P-7) Hole Punch
Fabrication P-8 P-8 7 Hole Bucket Punch (P-8) Hole Punch
Fabrication P-9 P-9 9 Hole Bucket Punch (P-9) Hole Punch
Fabrication P1 P1 Plastic Rivet Laced One End Lacing
Fabrication P2 P2 Plastic Rivet Laced Both Ends Lacing
No image PE-H Prepared Ends – Interwoven Finger Splice 2 Endless
Fabrication Perforation Perforation Perforation Hole Punch
No image RSS2 S/S Staple Laced Both Ends – Recessed Lacing
Fabrication S1 S1 Staple Laced One End Lacing
Fabrication S2 S2 Staple Laced Both Ends Lacing
Fabrication SC105-3 SC105-3 1-1/2" Scoop Cleat - PVC Cleat
Fabrication SC2-3 SC2-3 2" Scoop Cleat - PVC Cleat
Fabrication SC205-3 SC205-3 2-1/2" Scoop Cleat - PVC Cleat
Fabrication SC3-3 SC3-3 3" Scoop Cleat - PVC Cleat
No image SFR2 S/S Flexco Rivet Laced Both Ends Lacing
Fabrication SIW410 SIW410 1-3/16" Sidewall with Base - Urethane Sidewall
Fabrication SIW415 SIW415 1-9/16" Sidewall with Base - Urethane Sidewall
Fabrication SIW420 SIW420 2" High Sidewall with Base - Urethane Sidewall
Fabrication SIW430 SIW430 3" High Sidewall with Base - Urethane Sidewall
Fabrication SS1 SS1 S/S Staple Laced One End Lacing
Fabrication SS2 SS2 S/S Staple Laced Both Ends Lacing
Fabrication SSA1 SSA1 S/S Alligator Laced One End Lacing
Fabrication SSA2 SSA2 S/S Alligator Laced Both Ends Lacing
Fabrication SSC1 SSC1 S/S Clipper Laced One End Lacing
Fabrication SSC2 SSC2 S/S Clipper Laced Both Ends Lacing
Fabrication SSU1 SSU1 S/S Unibar One End Lacing
Fabrication SSU2 SSU2 S/S Unibar Both Ends Lacing
Fabrication TC05-3 TC05-3 1/2" Tee Cleat - PVC Cleat
Fabrication TC1-3 TC1-3 1" Tee Cleat - PVC Cleat
Fabrication TC105-3 TC105-3 1-1/2" Tee Cleat - PVC Cleat
Fabrication TC2-3 TC2-3 2" Tee Cleat - PVC Cleat
Fabrication TC205-3 TC205-3 2-1/2" Tee Cleat - PVC Cleat
Fabrication TC3-3 TC3-3 3" Tee Cleat - PVC Cleat
Fabrication TC4-3 TC4-3 4" Tee Cleat - PVC Cleat
Fabrication TL05-3 TL05-3 1/2" Thin Line Cleat - PVC Cleat
Fabrication TL1-3 TL1-3 1" Thin Line Cleat - PVC Cleat
Fabrication TL105-3 TL105-3 1-1/2" Thin Line Cleat - PVC Cleat
Fabrication TL2-3 TL2-3 2" Thin Line Cleat - PVC Cleat
Fabrication TL205-3 TL205-3 2-1/2" Thin Line Cleat - PVC Cleat
Splicing Instructions
Download Spec Page

Part Number: 2-2202

Description: W2000 CBS
Color : White
Plies: 1
Nominal OAG: 0.25″
 +/- 0.02″
Fabric: Interwoven Polyester
Top Surface: Smooth PVC
Bottom Surface: Smooth Cover (Dull Finish)
Compound: PVC
Chemical Resistance Chart
Work Tension: 200 lbs./PIW
Weight: 0.13 lbs./PIW
Lacing Selection Chart
Minimum Pulley Diameter: 5″
Back Flex Min. Pulley Diameter: 7.5″
Profile Min. Pulley Diameter Chart
Working Temperature (F): 0 to 180
Stock Width: 72″
Attributes: FDA Compliant, Fire Retardant, Static Conductive to < 3 x 10^8 ohms OSHA 29 CFR
MinPulleyChart: 0
Belt Guts – Anatomy of a Belt
Duration: [04:24]
Judging A Belt By Its Cover
Duration: [04:41]
Features:

2-2202 features a smooth oil resistant PVC cover with a tightly interwoven polyester carcass. This belt will lie flat and resist stretch. It is Oil Resistant, Fire Retardant, Static Conductive to OSHA 29 CFR and FDA compliant. Please refer to the Chemical Resistance Chart when choosing a cleaning solution. W2000 CBS can be used as a general purpose food handling belt. It can be used for light duty bucket elevators. Depending on conditions it can be used in chicken and meat applications. Do not use this belt in slider bed applications.
