Part #: 3-1203Z

Part Number: 3-1203Z

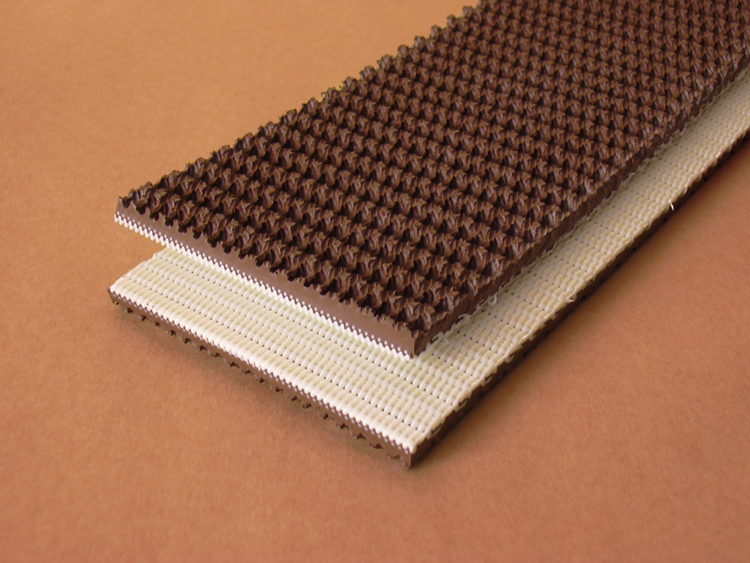

Description: Neoprene R/T Ziplink
Color : Brown
Plies: 1
Nominal OAG: 0.25″
 +/- 0.02″
Fabric: Plastic Mesh
Top Surface: Hemp Impression Rough Top
Bottom Surface: Bare
Compound: NBR
Work Tension: 150 lbs./PIW
Elongation: Less than 1%
Weight: 0.09 lbs./PIW
Minimum Pulley Diameter: 3″
Back Flex Min. Pulley Diameter: 4.5″
Working Temperature (F): 0 to 250
Attributes: Sliderbed Suitable
Top Cover Coefficient of Friction/Steel: 0.7
Bottom Cover Coefficient of Friction/Steel: 0.1
Features:

3-1203Z features a ziplink splice to solve problems in applications where lace retension or installing an endless belt is a problem. It is non-marking and oil resistant. This belt is FDA compliant. Neoprene Rough Top Ziplink is a problem solving belt for light and medium industrial applications. The Ziplink splice is smooth and non-metallic and combinces the convenience of a laced belt with the splice tension rating of an endless belt. This belt is oil resistant and non-marking.

Gallery

Part Number: 3-1203Z

Description: Neoprene R/T Ziplink
Color : Brown
Plies: 1
Nominal OAG: 0.25″
 +/- 0.02″
Fabric: Plastic Mesh
Top Surface: Hemp Impression Rough Top
Bottom Surface: Bare
Compound: NBR
Work Tension: 150 lbs./PIW
Elongation: Less than 1%
Weight: 0.09 lbs./PIW
Minimum Pulley Diameter: 3″
Back Flex Min. Pulley Diameter: 4.5″
Working Temperature (F): 0 to 250
Attributes: Sliderbed Suitable
Top Cover Coefficient of Friction: 0.7
Bottom Cover Coefficient of Friction: 0.1
Features:

3-1203Z features a ziplink splice to solve problems in applications where lace retension or installing an endless belt is a problem. It is non-marking and oil resistant. This belt is FDA compliant. Neoprene Rough Top Ziplink is a problem solving belt for light and medium industrial applications. The Ziplink splice is smooth and non-metallic and combinces the convenience of a laced belt with the splice tension rating of an endless belt. This belt is oil resistant and non-marking.
