Part #: 3-7102

Part Number: 3-7102

Description: 2 Ply Steep Grade
Color : Black
Plies: 2
Nominal OAG: 0.287″
 +/- 0.02″
 Recessed OAG: 0.13″
Fabric: Polyester
Top Surface: Oval Shaped Nubs
Bottom Surface: Bare
Compound: SBR
Work Tension: 150 lbs./PIW
Elongation: Less than 2%
Weight: 0.1 lbs./PIW
Minimum Pulley Diameter: 2″
Back Flex Min. Pulley Diameter: 3″
Working Temperature (F): -25 to 250
Attributes: Sliderbed Suitable
Top Cover Coefficient of Friction/Steel: 0.8
Bottom Cover Coefficient of Friction/Steel: 0.2
Features:

This belt offers excellent gripping for the highest inclines (up to 45 degrees for some products). This is an old time favorite for many industrial applications. NOTE–The rough top impression must be recessed to use lacing. Use Recessed OAG for Lacing Recommendation. 2 Ply Steep Grade is used for some of the steepest inclines. The belt also prevents breakage due to the cushion effect of it’s profile. It is very popular in the airline industry and bottling plants.

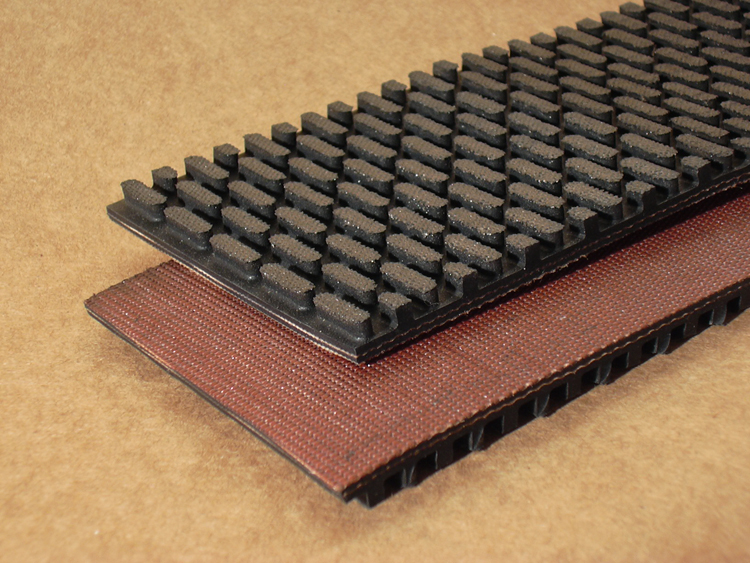

Gallery

Part Number: 3-7102

Description: 2 Ply Steep Grade
Color : Black
Plies: 2
Nominal OAG: 0.287″
 +/- 0.02″
 Recessed OAG: 0.13″
Fabric: Polyester
Top Surface: Oval Shaped Nubs
Bottom Surface: Bare
Compound: SBR
Work Tension: 150 lbs./PIW
Elongation: Less than 2%
Weight: 0.1 lbs./PIW
Minimum Pulley Diameter: 2″
Back Flex Min. Pulley Diameter: 3″
Working Temperature (F): -25 to 250
Attributes: Sliderbed Suitable
Top Cover Coefficient of Friction: 0.8
Bottom Cover Coefficient of Friction: 0.2
MinPulleyChart: 0
Features:

This belt offers excellent gripping for the highest inclines (up to 45 degrees for some products). This is an old time favorite for many industrial applications. NOTE–The rough top impression must be recessed to use lacing. Use Recessed OAG for Lacing Recommendation. 2 Ply Steep Grade is used for some of the steepest inclines. The belt also prevents breakage due to the cushion effect of it’s profile. It is very popular in the airline industry and bottling plants.
