Part #: 4-2003

Part Number: 4-2003

Description:

3 Ply Black OHGR

Color:

Black

Plies:

Nominal OAG:

0.135

+/-

0.03

Fabric:

Polyester

Top Surface:

Smooth

Bottom Surface:

Friction

Compound:

NBR

Work Tension:

150

Elongation:

Less than 2%

Weight:

0.065

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

Working Temperature:

0 to 250

Max. Stocked Width:

Top Cover Coefficient of Friction/Steel:

1.8

Bottom Cover Coefficient of Friction/Steel:

0.6

Attributes: Sliderbed Suitable, FDA Compliant

1 of 4

4-2003 Close Up

Features:

4-2003 uses an oil-, heat-, and grease-resistant compound designed for demanding environments where PVC is not suitable. The carcass provides a balance of flexibility and durability.

The belt performs consistently in oily or abrasive conditions.

3 Ply Black OHGR is widely used in agriculture, grain handling, and industrial environments where contaminants would degrade standard PVC belts.

Image	Fabrication	Description	Fabrication Type
	90CHEV05-2	90 Degree Chevron - 1/2" x 1/2" Lug - SBR	Chevron
	90CHEV1-2	90 Degree Chevron - 1" x 1" Lug - SBR	Chevron
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-1	A Section Cleat - Nitrile	Cleat
	AC-2	A Section Cleat - SBR	Cleat
	AV-1	A Section V-Guide - Nitrile	V-Guide
	AVN-1	A Section V-Guide Notched - Nitrile	V-Guide
	B-1	2 Hole Bucket Punch (B-1)	Hole Punch
	B-2	3 Hole Bucket Punch (B-2)	Hole Punch
	B-3	4 Hole Bucket Punch (B-3)	Hole Punch
	B-4	5 Hole Bucket Punch (B-4)	Hole Punch
	B-5	6 Hole Bucket Punch (B-5)	Hole Punch
	B-6	5 Hole Bucket Punch (B-6)	Hole Punch
	B-7	7 Hole Bucket Punch (B-7)	Hole Punch
	B-8	9 Hole Bucket Punch (B-8)	Hole Punch
	BC-1	B Section Cleat - Nitrile	Cleat
	BC-2	B Section Cleat - SBR	Cleat
	BC2-2	2" Beefy Cleat - SBR	Cleat
	BC3-2	3" Beefy Cleat - SBR	Cleat
	BV-1	B Section V-Guide - Nitrile	V-Guide
	BVN-1	B Section V-Guide Notched - Nitrile	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CC-1	C Section Cleat - Nitrile	Cleat
	CC-2	C Section Cleat - SBR	Cleat
	CFA2	Alligator Laced Both Ends – Cover Flap	Lacing
	CFC2	Clipper Laced Both Ends – Cover Flap	Lacing
	CFCSU2	Coated Steel Unibar Both Ends – Cover Flap	Lacing
	CFS2	Staple Laced Both Ends – Cover Flap	Lacing
	CFSS2	S/S Staple Laced Both Ends – Cover Flap	Lacing
	CFSSC2	S/S Clipper Laced Both Ends – Cover Flap	Lacing
	CFSSU2	S/S Unibar Both Ends – Cover Flap	Lacing
	CSU1	Coated Steel Unibar One End	Lacing
	CSU2	Coated Steel Unibar Both Ends	Lacing
	CVN-1	C Section V-Guide Notched - Nitrile	V-Guide
	DV-1	D Section V-Guide - Nitrile	V-Guide
	DVN-1	D Section V-Guide Notched - Nitrile	V-Guide
	E-A	Endless - Lap Splice	Endless
	FLG05-2	1/2" High Flange - SBR	Flange
	FLG05S-2	1/2" High Siped Flange - SBR	Flange
	FLG1-2	1" High Flange - SBR	Flange
	FLG105-2	1-1/2" High Flange - SBR	Flange
	FLG105S-2	1-1/2" High Siped Flange - SBR	Flange
	FLG1S-2	1" High Siped Flange - SBR	Flange
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
No image	HLSSC2	S/S Clipper Laced Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	LONG - LW	Longitudinal Splice - LW	Longitudinal
	LUG0505-7	1/2" x 1/2" Lug - MOR	Cleat
	LUG11-7	1" x 1" Lug - MOR	Cleat
No image	MS1	Megalloy Staple Laced One End	Lacing
No image	MS2	Megalloy Staple Laced Both Ends	Lacing
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
	P-3	4 Hole Bucket Punch (P-3)	Hole Punch
	P-4	5 Hole Bucket Punch (P-4)	Hole Punch
	P-5	6 Hole Bucket Punch (P-5)	Hole Punch
	P-7	5 Hole Bucket Punch (P-7)	Hole Punch
	P-8	7 Hole Bucket Punch (P-8)	Hole Punch
	P-9	9 Hole Bucket Punch (P-9)	Hole Punch
	P1	Plastic Rivet Laced One End	Lacing
	P2	Plastic Rivet Laced Both Ends	Lacing
No image	PE-A	Prepared Ends - Lap Splice	Endless
	Perforation	Perforation	Hole Punch
No image	RA1	Alligator Laced One End – Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing
	SC2-7	2" Scoop Cleat - MOR	Cleat
	SC3-7	3" Scoop Cleat - MOR	Cleat
	SC4-7	4" Scoop Cleat - MOR	Cleat

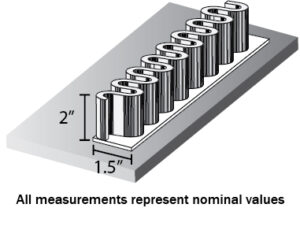

	SI220	2" High Sidewall - SBR	Sidewall
	SI225	2-1/2" High Sidewall - SBR	Sidewall
	SI230	3" High Sidewall - SBR	Sidewall
	SI235	3-1/2" High Sidewall - SBR	Sidewall
	SL2	Spiral Laced Both Ends	Lacing
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
	TC1-1	1" Tee Cleat - Nitrile	Cleat
	TC1-2	1" Tee Cleat - SBR	Cleat
	TC105-1	1-1/2" Tee Cleat - Nitrile	Cleat
	TC105-2	1-1/2" Tee Cleat - SBR	Cleat
	TC2-1	2" Tee Cleat - Nitrile	Cleat
	TC2-2	2" Tee Cleat - SBR	Cleat
	TC3-1	3" Tee Cleat - Nitrile	Cleat
	TC3-2	3" Tee Cleat - SBR	Cleat
	TC4-1	4" Tee Cleat - Nitrile	Cleat
	TC4-2	4" Tee Cleat - SBR	Cleat
