Part #: 4-4400

Part Number: 4-4400

Description:

U2C Urethane 8M/8U/BU

Color:

Clear

Plies:

Nominal OAG:

0.078

+/-

0.015

Fabric:

Monofilament

Top Surface:

Smooth Urethane

Bottom Surface:

Bare

Compound:

Poly Urethane

Work Tension:

100

Elongation:

Less than 1%

Weight:

0.04

Minimum Pulley Diameter:

1.5

Back Flex Min. Pulley Diameter:

2.25

Working Temperature:

0 to 180

Max. Stocked Width:

118.11

Hardness:

92a

Attributes: Cross Rigid, Anti-Static, Oil Resistant, Sliderbed Suitable, Abrasion Resistant, FDA Compliant

1 of 3

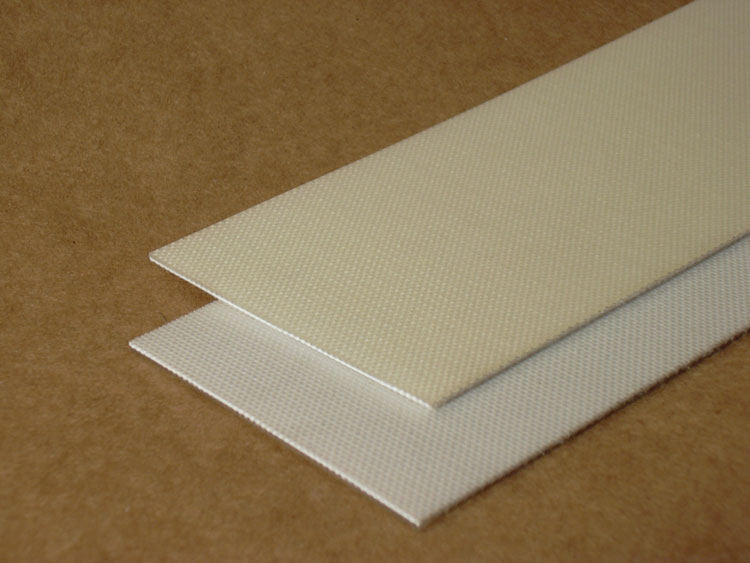

4-4400 Close Up

Features:

U2C Urethane 8M/8U/BU combines a durable urethane cover with a cross-rigid, low-stretch monofilament carcass. A special woven bottom ply provides low noise and smooth operation on slider beds.

The belt navigates small pulleys, tracks well over short centers, and offers excellent oil and abrasion resistance.

This construction is popular for de-stackers and transfer points in metal stamping, aluminum recycling, glass handling, and other industrial applications requiring gouge resistance.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-3	A Section Cleat - PVC	Cleat
	AC-4	A Section Cleat - Urethane	Cleat
	AV-4	A Section V-Guide - Urethane	V-Guide
	AVN-4	A Section V-Guide Notched - Urethane	V-Guide
	BC-4	B Section Cleat - Urethane	Cleat
	BV-4	B Section V-Guide - Urethane	V-Guide
	BVN-4	B Section V-Guide Notched - Urethane	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CC-4	C Section Cleat - Urethane	Cleat
	CFS2	Staple Laced Both Ends – Cover Flap	Lacing
	CFSSA2	S/S Alligator Laced Both Ends – Cover Flap	Lacing
	CFSSC2	S/S Clipper Laced Both Ends – Cover Flap	Lacing
	CFSSU2	S/S Unibar Both Ends – Cover Flap	Lacing
	CV-4	C Section V-Guide - Urethane	V-Guide
	CVN-4	C Section V-Guide Notched - Urethane	V-Guide
	E-C	Endless – Finger Splice	Endless
	E-J	Endless - Skived Splice	Endless
No image	FSL2	Finger Spiral Laced Both Ends	Lacing
No image	HP	Hole Punch	Hole Punch
	LONG - LW	Longitudinal Splice - LW	Longitudinal
No image	MS1	Megalloy Staple Laced One End	Lacing
No image	MS2	Megalloy Staple Laced Both Ends	Lacing
	OC-4	O Section Cleat - Urethane	Cleat
	OV-4	O Section V-Guide - Urethane	V-Guide
	OVN-4	O Section V-Guide Notched - Urethane	V-Guide
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
	P1	Plastic Rivet Laced One End	Lacing
	P2	Plastic Rivet Laced Both Ends	Lacing
No image	PE-C	Prepared Ends- Finger Splice	Endless
No image	PE-J	Prepared Ends - Skived Splice	Endless
	Perforation	Perforation	Hole Punch
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RP2	Plastic Rivet Laced Both Ends - Recessed	Lacing
	RS1	Staple Laced One End – Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
	RSS1	S/S Staple Laced One End – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSA1	S/S Alligator Laced One End – Recessed	Lacing
No image	RSSA2	S/S Alligator Laced Both Ends – Recessed	Lacing
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing
	SIW410	1-3/16" Sidewall with Base - Urethane	Sidewall
	SIW415	1-9/16" Sidewall with Base - Urethane	Sidewall
	SIW420	2" High Sidewall with Base - Urethane	Sidewall
	SIW430	3" High Sidewall with Base - Urethane	Sidewall
	SL2	Spiral Laced Both Ends	Lacing
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
	TC1-4	1" Tee Cleat - Urethane	Cleat
	TC105-4	1-1/2" Tee Cleat - Urethane	Cleat
	TC2-4	2" Tee Cleat - Urethane	Cleat
	TL05-4	1/2" Thin Line Cleat - Urethane	Cleat
	TL1-4	1" Thin Line Cleat - Urethane	Cleat
	TL105-4	1-1/2" Thin Line Cleat - Urethane	Cleat
	TL2-4	2" Thin Line Cleat - Urethane	Cleat
	TL205-4	2-1/2" Thin Line Cleat - Urethane	Cleat
	WIW315	1-1/2" High White Weldwall	Sidewall
