Part #: 4-4701

Part Number: 4-4701

Description:

R1200 Red URA-Stamp

Color:

Red

Plies:

Nominal OAG:

0.22

+/-

0.015

Fabric:

Interwoven Polyester

Top Surface:

Smooth Urethane

Bottom Surface:

Friction Surface

Compound:

Poly Urethane

Work Tension:

120

Elongation:

Less than 2%

Weight:

0.108

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

4.5

Working Temperature:

20 to 180

Max. Stocked Width:

Top Cover Coefficient of Friction/Steel:

0.4

Bottom Cover Coefficient of Friction/Steel:

0.3

Attributes: Sliderbed Suitable, Abrasion Resistant

1 of 3

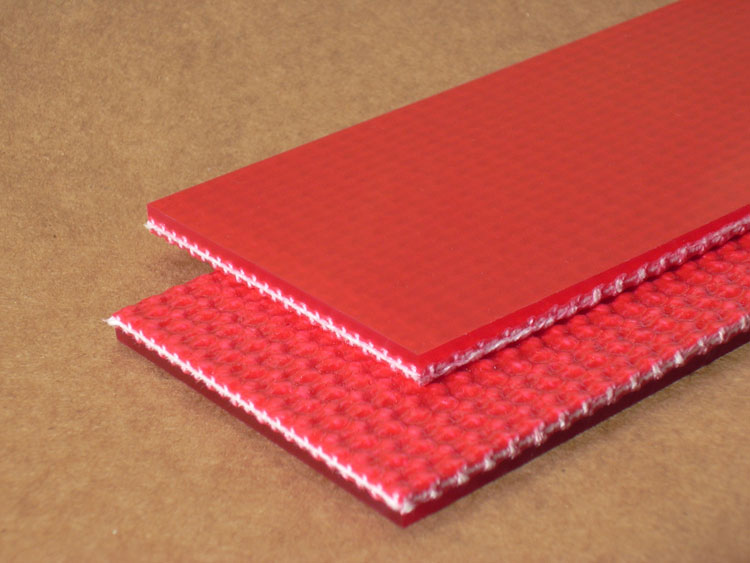

4-4701 Close Up

Features:

4-4701 builds on the R1200 platform with a 2 mm thick urethane cover engineered for extreme abrasion resistance and oil resistance. The construction delivers outstanding durability under severe mechanical abuse.

The belt tracks well under high tension and resists both cutting and surface tearing.

Red URA-Stamp is used in metal stamping, recycling, die-cutting, brick manufacturing, and other high-abrasion applications where belt life is paramount.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-4	A Section Cleat - Urethane	Cleat
	AV-4	A Section V-Guide - Urethane	V-Guide
	AVN-4	A Section V-Guide Notched - Urethane	V-Guide
	BC-4	B Section Cleat - Urethane	Cleat
	BV-4	B Section V-Guide - Urethane	V-Guide
	BVN-4	B Section V-Guide Notched - Urethane	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CC-4	C Section Cleat - Urethane	Cleat
	CFA2	Alligator Laced Both Ends – Cover Flap	Lacing
	CFC2	Clipper Laced Both Ends – Cover Flap	Lacing
	CFCSU2	Coated Steel Unibar Both Ends – Cover Flap	Lacing
	CFS2	Staple Laced Both Ends – Cover Flap	Lacing
	CFSS2	S/S Staple Laced Both Ends – Cover Flap	Lacing
	CFSSA2	S/S Alligator Laced Both Ends – Cover Flap	Lacing
	CFSSC2	S/S Clipper Laced Both Ends – Cover Flap	Lacing
	CFSSU2	S/S Unibar Both Ends – Cover Flap	Lacing
	CV-4	C Section V-Guide - Urethane	V-Guide
	CVN-4	C Section V-Guide Notched - Urethane	V-Guide
	E-H	Endless - Finger Splice Interwoven 2	Endless
	E-J	Endless - Skived Splice	Endless
No image	E-R	Endless – Beveled Rod Splice	Endless
No image	FR1	Flexco Rivet Laced One End	Lacing
No image	FR2	Flexco Rivet Laced Both Ends	Lacing
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
	HLCSU2	Coated Steel Unibar Both Ends – Hidden Lace	Lacing
No image	HLS2	Staple Laced Both Ends – Hidden Lace	Lacing
No image	HLSS2	S/S Staple Laced Both Ends – Hidden Lace	Lacing
	HLSSU2	S/S Unibar Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	LONG - IW	Longitudinal Splice - IW	Longitudinal
No image	MS2	Megalloy Staple Laced Both Ends	Lacing
	OC-4	O Section Cleat - Urethane	Cleat
	OV-4	O Section V-Guide - Urethane	V-Guide
	OVN-4	O Section V-Guide Notched - Urethane	V-Guide
No image	PE-H	Prepared Ends – Interwoven Finger Splice 2	Endless
No image	PE-R	Prepared Ends – Beveled Rod Splice	Endless
	Perforation	Perforation	Hole Punch
No image	RA1	Alligator Laced One End – Recessed	Lacing
No image	RA2	Alligator Laced Both Ends – Recessed	Lacing
	RC1	Clipper Laced One End - Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RCSU1	Coated Steel Unibar One End – Recessed	Lacing
No image	RCSU2	Coated Steel Unibar Both Ends – Recessed	Lacing
No image	RMS1	Megalloy Staple Laced One End – Recessed	Lacing
No image	RMS2	Megalloy Staple Laced Both Ends – Recessed	Lacing
	RS1	Staple Laced One End – Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
	RSS1	S/S Staple Laced One End – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSA1	S/S Alligator Laced One End – Recessed	Lacing
No image	RSSA2	S/S Alligator Laced Both Ends – Recessed	Lacing
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing
	SIW410	1-3/16" Sidewall with Base - Urethane	Sidewall
	SIW415	1-9/16" Sidewall with Base - Urethane	Sidewall
	SIW420	2" High Sidewall with Base - Urethane	Sidewall
	SIW430	3" High Sidewall with Base - Urethane	Sidewall
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
	TC1-4	1" Tee Cleat - Urethane	Cleat
	TC105-4	1-1/2" Tee Cleat - Urethane	Cleat
	TC2-4	2" Tee Cleat - Urethane	Cleat
	TC4-3	4" Tee Cleat - PVC	Cleat
	TL05-4	1/2" Thin Line Cleat - Urethane	Cleat
	TL1-4	1" Thin Line Cleat - Urethane	Cleat
	TL105-4	1-1/2" Thin Line Cleat - Urethane	Cleat
	TL2-4	2" Thin Line Cleat - Urethane	Cleat
	TL205-4	2-1/2" Thin Line Cleat - Urethane	Cleat
