Part #: 4-5000

Part Number: 4-5000

Description:

TMI-B150-FBS

Color:

Black

Plies:

Nominal OAG:

0.12

+/-

0.02

Fabric:

Non-Woven Polyester

Top Surface:

Bare

Bottom Surface:

Bare

Compound:

PVC

Work Tension:

120

Elongation:

Less than 2%

Weight:

0.063

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

Working Temperature:

-10 to 180

Attributes: Sliderbed Suitable, Fire Retardant

1 of 3

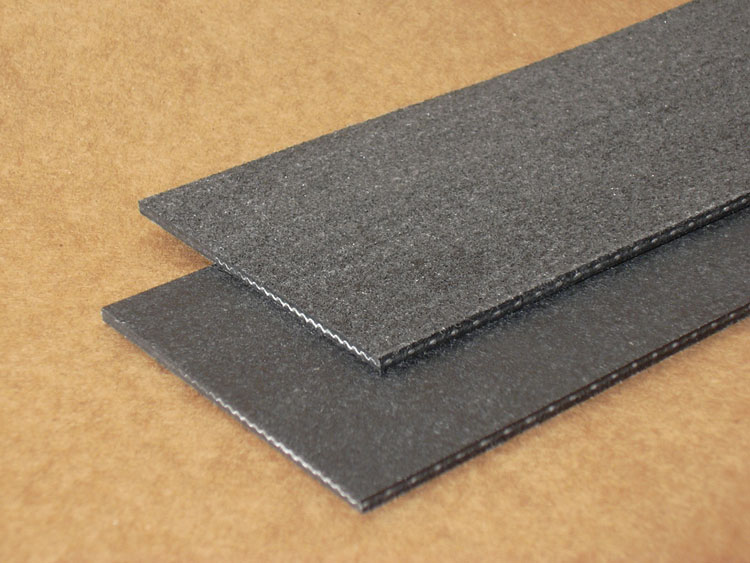

4-5000 Close Up

Features:

TMI B150 FBS features a non-woven polyester carcass that is bare on both sides for low noise and low friction. The construction offers excellent tracking, edge integrity, and fire-retardant performance.

The belt runs quietly at high speeds, which improves operator comfort and equipment sound levels.

It is commonly used on OEM conveyors and airport or airline luggage systems where quiet operation and dependable handling are essential.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-6	A Section Cleat - RAV	Cleat
	AV-3	A Section V-Guide - PVC	V-Guide
	AVN-3	A Section V-Guide Notched - PVC	V-Guide
	AVN-6	A Section V-Guide Notched - RAV	V-Guide
	BV-6	B Section V-Guide - RAV	V-Guide
	BVN-6	B Section V-Guide Notched - RAV	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CFC2	Clipper Laced Both Ends – Cover Flap	Lacing
	CSU1	Coated Steel Unibar One End	Lacing
	CSU2	Coated Steel Unibar Both Ends	Lacing
	CV-6	C Section V-Guide - RAV	V-Guide
	CVN-6	C Section N-Guide Notched - RAV	V-Guide
	E-G	Endless - Finger Splice Interwoven 1	Endless
	E-J	Endless - Skived Splice	Endless
No image	E-S	Endless - Butt-Splice	Endless
	FLG05-6	1/2" x 1/2" High Flange - RAV	Flange
	FLG1-6	1" High Flange - RAV	Flange
	FLG105-6	1-1/2" High Flange - RAV	Flange
	FLG105DS-6	1-1/2" High Flange Drilled and Siped - RAV	Flange
	FLG105N-6	1-1/2" High Flange Notched - RAV	Flange
	FLG1DS-6	1" High Flange Drilled and Siped - RAV	Flange
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	K6V-6	K6 Section V-Guide - RAV	V-Guide
	K6VN-6	K6 Section V-Guide Notched - RAV	V-Guide
	K8V-6	K8 Section V-Guide - RAV	V-Guide
	K8VN-6	K8 Section V-Guide Notched - RAV	V-Guide
	LONG - LW	Longitudinal Splice - LW	Longitudinal
	LUG0505-6	1/2" x 1/2" Lug - RAV	Cleat
	LUG7575-6	3/4" x 3/4" Lug - RAV	Cleat
No image	MS1	Megalloy Staple Laced One End	Lacing
No image	MS2	Megalloy Staple Laced Both Ends	Lacing
	OC-6	O Section Cleat - RAV	Cleat
	OV-6	O Section V-Guide - RAV	V-Guide
	OVN-6	O Section V-Guide Notched - RAV	V-Guide
	P1	Plastic Rivet Laced One End	Lacing
	P2	Plastic Rivet Laced Both Ends	Lacing
No image	PE-J	Prepared Ends - Skived Splice	Endless
No image	PE-S	Prepared Ends - Butt Splice	Endless
	Perforation	Perforation	Hole Punch
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing
	SC105-6	1-1/2" Scoop Cleat - RAV	Cleat
No image	SC2-6	2" Scoop Cleat - RAV	Cleat
	SC205-6	2-1/2" Scoop Cleat - RAV	Cleat
	SC3-6	3" Scoop Cleat - RAV	Cleat
	SIW410	1-3/16" Sidewall with Base - Urethane	Sidewall
	SL2	Spiral Laced Both Ends	Lacing
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
	TC05-6	1/2" Tee Cleat - RAV	Cleat
	TC1-6	1" Tee Cleat - RAV	Cleat
	TC2-6	2" Tee Cleat - RAV	Cleat
	TC4-6	4" Tee Cleat - RAV	Cleat
	TL05-6	1/2" Thin Line Cleat - RAV	Cleat
	TL1-6	1" Thin Line Cleat - RAV	Cleat
	TL105-6	1-1/2" Thin Line Cleat - RAV	Cleat
	TL2-6	2" Thin Line Cleat - RAV	Cleat
	TL205-6	2-1/2" Thin Line Cleat - RAV	Cleat
