Part #: 5-1511

Part Number: 5-1511

Description: 2 Ply 150 1/8 x 1/32 STD
Color : Black
Plies: 2
Nominal OAG: 0.236″
 +/- 0.03″
Fabric: Polyester
Top Surface: Smooth Cover
Top Cover Thickness: 0.125″
Bottom Surface: Smooth Cover
Bottom Cover Thickness: 0.0312″
Compound: SBR
Work Tension: 150 lbs./PIW
Elongation: Less than 3%
Weight: 0.137 lbs./PIW
Working Temperature (F): -20 to 200
Stock Width: 84″
Attributes: Troughable
Hardness: 65a

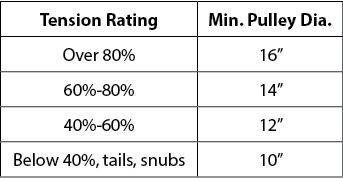

Minimum Pulley Chart:
Minimum Pulley Chart
Features:

5-1511 features a smooth top and bottom surface. The heavier cover with the high strength synthetic fabric results in a long wearing, mildew and rot resistant, low stretch belt. 150 1/8″ x 1/32″ STD is excellent for moderately abrasive applications. It is popular in the sand, gravel and lumber industries.
