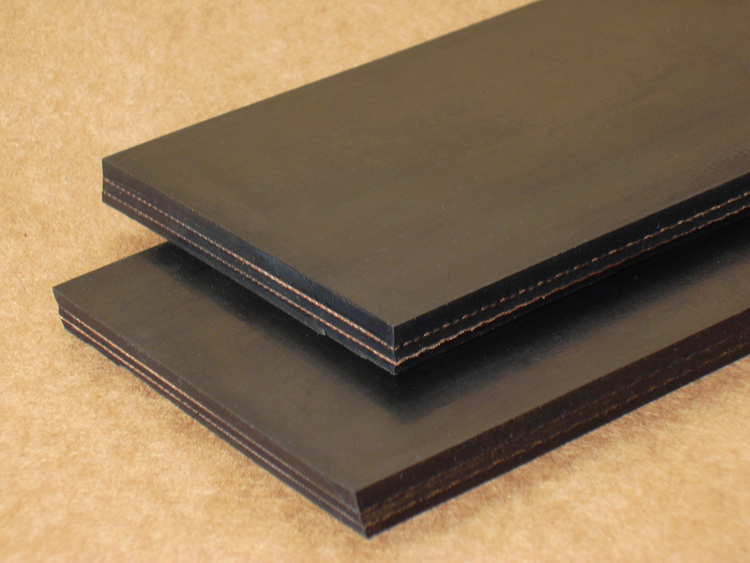

Part #: 5-2732

Part Number: 5-2732

Description:

2 Ply 220 1/8 x 1/16 MOR

Color:

Black

Plies:

2

Nominal OAG:

0.3

 +/-

0.03
Fabric:
Polyester/Nylon

Top Surface:

Smooth Cover
Top Cover Thickness:
0.125

Bottom Surface:

Smooth Cover
Bottom Cover Thickness:
0.0625
Compound:
MOR
Work Tension:
220

Elongation:

Less than 4%

Weight:

0.153

Working Temperature:

-20 to 225

Max. Stocked Width:

84

Hardness:

65a
Attributes: Oil Resistant, Troughable, Oil Resistance ASTM D471 70C/72hrs/IRM903 < 20% Swell
1 of 1

Related Documents

Minimum Pulley Chart
Tension RatingMin. Pulley Dia. (in)Min. Pulley Dia. (mm)
Over 80%16"406.4 mm
60%-80%14"355.6 mm
40%-60%12"304.8 mm
Below 40%, tails, snubs10"254 mm

Related Documents

Features:

5-2732 features the same construction benefits of the standard 220 3/16″ x 1/16″ STD belt, but with a Moderately Oil-Resistant (MOR) compound for environments where hydrocarbons and oily materials are present. The belt maintains a durable synthetic carcass with low stretch, good fastener retention, and excellent abrasion resistance, while offering additional protection against vegetable oils, grain oils, wood resins, and process contaminants.

The 220 1/8″ x 1/16″ MOR construction is commonly used to convey oily grain, oily wood chips, waste materials, and biomass. Its MOR properties make it well-suited for sewage treatment facilities, municipal waste handling, and industrial processes where moderate oil presence would otherwise reduce belt life. This belt is also applicable in agriculture, feed mills, recycling, and general material handling environments requiring a tough, impact-resistant belt with improved oil resistance.

Fabrications for Belt Specification

Image Fabrication Description Fabrication Type
Fabrication 45CHEV05-7
45CHEV05-7 45 Degree Chevron - 1/2" x 1/2" Lug - MOR Chevron
Fabrication 90CHEV05-7
90CHEV05-7 90 Degree Chevron - 1/2" x 1/2" Lug - MOR Chevron
Fabrication 90CHEV1-7
90CHEV1-7 90 Degree Chevron - 1" x 1" Lug - MOR Chevron
Fabrication 90SM12-7
90SM12-7 90 Degree Scrap Metal Chevron - 1" x 2" - MOR Chevron
Fabrication A1
A1 Alligator Laced One End Lacing
Fabrication AC-7
AC-7 A Section Cleat - MOR Cleat
Fabrication AV-7
AV-7 A Section V-Guide - MOR V-Guide
Fabrication AVN-7
AVN-7 A Section V-Guide Notched - MOR V-Guide
Fabrication B-1
B-1 2 Hole Bucket Punch (B-1) Hole Punch
Fabrication B-2
B-2 3 Hole Bucket Punch (B-2) Hole Punch
Fabrication B-3
B-3 4 Hole Bucket Punch (B-3) Hole Punch
Fabrication B-4
B-4 5 Hole Bucket Punch (B-4) Hole Punch
Fabrication B-5
B-5 6 Hole Bucket Punch (B-5) Hole Punch
Fabrication B-6
B-6 5 Hole Bucket Punch (B-6) Hole Punch
Fabrication B-7
B-7 7 Hole Bucket Punch (B-7) Hole Punch
Fabrication BC-7
BC-7 B Section Cleat - MOR Cleat
Fabrication BC1-7
BC1-7 1" Beefy Cleat - MOR Cleat
Fabrication BC2-7
BC2-7 2" Beefy Cleat - MOR Cleat
Fabrication BC3-7
BC3-7 3" Beefy Cleat - MOR Cleat
Fabrication BC4-7
BC4-7 4" Beefy Cleat - MOR Cleat
Fabrication BV-7
BV-7 B Section V-Guide - MOR V-Guide
Fabrication BVN-7
BVN-7 B Section V-Guide Notched - MOR V-Guide
Fabrication CC-7
CC-7 C Section Cleat - MOR Cleat
No image CFMS2 Megalloy Staple Laced Both Ends – Cover Flap Lacing
Fabrication CFS2
CFS2 Staple Laced Both Ends – Cover Flap Lacing
Fabrication CFSS2
CFSS2 S/S Staple Laced Both Ends – Cover Flap Lacing
Fabrication CV-7
CV-7 C Section V-Guide - MOR V-Guide
Fabrication CVN-7
CVN-7 C Section V-Guide Notched - MOR V-Guide
Fabrication DV-7
DV-7 D Section V-Guide - MOR V-Guide
Fabrication DVN-7
DVN-7 D Section V-Guide Notched - MOR V-Guide
Fabrication E-B
E-B Endless - 2 Ply Lap Endless
Fabrication FH1
FH1 Flexco Hinge Laced One End Lacing
Fabrication FH2
FH2 Flexco Hinge Laced Both Ends Lacing
Fabrication FLG05-7
FLG05-7 1/2" High Flange - MOR Flange
Fabrication FLG05S-7
FLG05S-7 1/2" High Siped Flange - MOR Flange
Fabrication FLG1-7
FLG1-7 1" High Flange - MOR Flange
Fabrication FLG105-7
FLG105-7 1-1/2" High Flange - MOR Flange
Fabrication FLG105S-7
FLG105S-7 1-1/2" High Siped Flange - MOR Flange
Fabrication FLG1S-7
FLG1S-7 1" High Siped Flange - MOR Flange
No image FP3 Flexco Plate Prepared (Lacing Included) Lacing
No image FP3NL Flexco Plate Prepared (No Lacing Included) Lacing
No image FR1 Flexco Rivet Laced One End Lacing
No image FR2 Flexco Rivet Laced Both Ends Lacing
No image HLFR2 Flexco Rivet Laced Both Ends – Hidden Laced Lacing
No image HLMFR2 Megalloy Flexco Rivet Laced Both Ends – Hidden Laced Lacing
No image HLS2 Staple Laced Both Ends – Hidden Lace Lacing
No image HLSFR2 S/S Flexco Rivet Laced Both Ends – Hidden Laced Lacing
No image HLSS2 S/S Staple Laced Both Ends – Hidden Lace Lacing
No image HP Hole Punch Hole Punch
Fabrication LONG - HW
LONG - HW Longitudinal Splice - HW Longitudinal
Fabrication LUG0505-7
LUG0505-7 1/2" x 1/2" Lug - MOR Cleat
Fabrication LUG11-7
LUG11-7 1" x 1" Lug - MOR Cleat
No image MFH1 Megalloy Flexco Hinge Laced One End Lacing
No image MFH2 Megalloy Flexco Hinge Laced Both Ends Lacing
No image MFR1 Megalloy Flexco Rivet Laced One End Lacing
No image MFR2 Megalloy Flexco Rivet Laced Both Ends Lacing
Fabrication P-1
P-1 2 Hole Bucket Punch (P-1) Hole Punch
Fabrication P-2
P-2 3 Hole Bucket Punch (P-2) Hole Punch
Fabrication P-3
P-3 4 Hole Bucket Punch (P-3) Hole Punch
Fabrication P-4
P-4 5 Hole Bucket Punch (P-4) Hole Punch
Fabrication P-5
P-5 6 Hole Bucket Punch (P-5) Hole Punch
Fabrication P-7
P-7 5 Hole Bucket Punch (P-7) Hole Punch
Fabrication P-8
P-8 7 Hole Bucket Punch (P-8) Hole Punch
Fabrication P-9
P-9 9 Hole Bucket Punch (P-9) Hole Punch
No image PE-B Prepared Ends- 2 Ply Lap Endless
Fabrication Perforation
Perforation Perforation Hole Punch
Fabrication Planer0505-7
Planer0505-7 1/2" x 1/2" Planer - MOR Chevron
No image RA1 Alligator Laced One End – Recessed Lacing
No image RA2 Alligator Laced Both Ends – Recessed Lacing
Fabrication RC2
RC2 Clipper Laced Both Ends - Recessed Lacing
No image RFH1 Flexco Hinge Laced One End - Recessed Lacing
No image RFH2 Flexco Hinge Laced Both Ends - Recessed Lacing
No image RFP3 Flexco Plate Prepared (Lacing Included) - Recessed Lacing
No image RFP3NL Flexco Plate Prepared (No Lacing Included) - Recessed Lacing
No image RFR1 Flexco Rivet Laced One End - Recessed Lacing
No image RFR2 Flexco Rivet Laced Both Ends – Recessed Lacing
No image RMFH1 Megalloy Flexco Hinge Laced One End - Recessed Lacing
No image RMFH2 Megalloy Flexco Hinge Laced Both Ends – Recessed Lacing
No image RMFR1 Megalloy Flexco Rivet Laced One End – Recessed Lacing
No image RMFR2 Megalloy Flexco Rivet Laced Both Ends - Recessed Lacing
No image RMS1 Megalloy Staple Laced One End – Recessed Lacing
No image RMS2 Megalloy Staple Laced Both Ends – Recessed Lacing
Fabrication RS1
RS1 Staple Laced One End – Recessed Lacing
Fabrication RS2
RS2 Staple Laced Both Ends – Recessed Lacing
No image RSFH1 S/S Flexco Hinge Laced One End – Recessed Lacing
No image RSFH2 S/S Flexco Hinge Laced Both Ends – Recessed Lacing
No image RSFP3 S/S Flexco Plate Prepared- (Lacing Included) - Recessed Lacing
No image RSFR1 S/S Flexco Rivet Laced One End – Recessed Lacing
No image RSFR2 S/S Flexco Rivet Laced Both Ends – Recessed Lacing
No image RSS2 S/S Staple Laced Both Ends – Recessed Lacing
No image RSSA1 S/S Alligator Laced One End – Recessed Lacing
No image RSSA2 S/S Alligator Laced Both Ends – Recessed Lacing
Fabrication SC2-7
SC2-7 2" Scoop Cleat - MOR Cleat
Fabrication SC3-7
SC3-7 3" Scoop Cleat - MOR Cleat
Fabrication SC4-7
SC4-7 4" Scoop Cleat - MOR Cleat
No image SFH1 S/S Flexco Hinge Laced One End Lacing
Fabrication SFH2
SFH2 S/S Flexco Hinge Laced Both Ends Lacing
No image SFP3 S/S Flexco Plate Prepared (Lacing Included) Lacing
No image SFR1 S/S Flexco Rivet Laced One End Lacing
No image SFR2 S/S Flexco Rivet Laced Both Ends Lacing
Fabrication SI720
SI720 2" High Sidewall - MOR Sidewall
Fabrication SI725
SI725 2-1/2" High Sidewall - MOR Sidewall
Fabrication SI730
SI730 3" High Sidewall - MOR Sidewall
Fabrication SI735
SI735 3-1/2" High Sidewall - MOR Sidewall
Fabrication SI740
SI740 4" High Sidewall - MOR Sidewall
Fabrication SI745
SI745 4-1/2" High Sidewall - MOR Sidewall
Fabrication SI750
SI750 5" High Sidewall - MOR Sidewall
Fabrication SI755
SI755 5-1/2" High Sidewall - MOR Sidewall
Fabrication SI765
SI765 6-1/2" High Fabric Reinforced Sidewall - MOR Sidewall
Fabrication SI770
SI770 7" High Fabric Reinforced Sidewall - MOR Sidewall
Fabrication SI775
SI775 7-1/2" High Fabric Reinforced Sidewall - MOR Sidewall
Fabrication SI780
SI780 8" High Fabric Reinforced Sidewall - MOR Sidewall
Fabrication SIC305-7
SIC305-7 3-1/2" SI Cleat - MOR Cleat
Fabrication SIC405-7
SIC405-7 4-1/2" SI Cleat - MOR Cleat
Fabrication SIC505-7
SIC505-7 5-1/2" SI Cleat - MOR Cleat
Fabrication SIC700-7
SIC700-7 7" SI Cleat - MOR Cleat
Fabrication SS35SBRCBS-FI
SS35SBRCBS-FI Super Screw 35, SBR, Gal. Steel, CBS Lacing
Fabrication SS63MORCBS-FI
SS63MORCBS-FI Super Screw 63, MOR, Gal. Steel, CBS Lacing
Fabrication SS63SBRCBS-SS-FI
SS63SBRCBS-SS-FI Super Screw 63, SBR, Stainless Steel, CBS Lacing
Fabrication SSA1
SSA1 S/S Alligator Laced One End Lacing
Fabrication TC1-7
TC1-7 1" Tee Cleat - MOR Cleat
Fabrication TC105-7
TC105-7 1-1/2" Tee Cleat - MOR Cleat
Fabrication TC2-7
TC2-7 2" Tee Cleat - MOR Cleat
Fabrication TC3-7
TC3-7 3" Tee Cleat - MOR Cleat
Fabrication TC4-7
TC4-7 4" Tee Cleat - MOR Cleat
Fabrication TC5-7
TC5-7 5" Tee Cleat - MOR T-Cleat

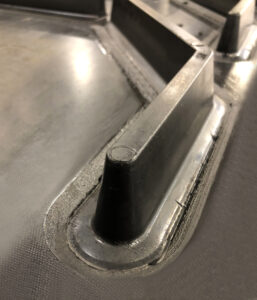

Fabrication VERSA100-7
VERSA100-7 Versa Cleat 1" - MOR Chevron
No image VERSA100D-7 Double Versa Cleat 1" - MOR Chevron
Fabrication VERSA150-7
VERSA150-7 Versa Cleat 1-1/2" - MOR Chevron
No image VERSA150D-7 Double Versa Cleat 1-1/2" - MOR Chevron
