Part #: 5-2733

Part Number: 5-2733

Description:

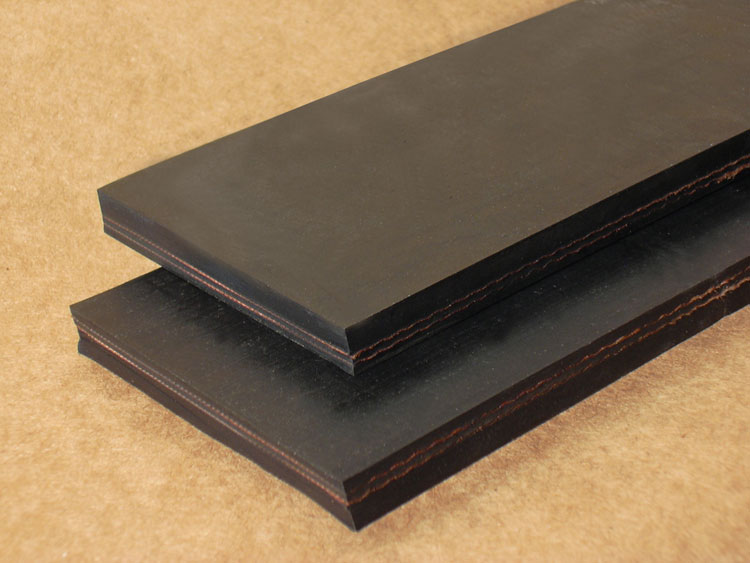

2 Ply 220 3/16 x 1/16 HT

Color:

Black

Plies:

Nominal OAG:

0.36

+/-

0.03

Lacing Options?

Fabric:

Polyester/Nylon

Top Surface:

Smooth Cover

Top Cover Thickness:

0.1875

Bottom Surface:

Smooth Cover

Bottom Cover Thickness:

0.0625

Compound:

EPDM

Chemical Resistance?

Work Tension:

220

Elongation:

Less than 4%

Weight:

0.2

Working Temperature:

-20 to 400

Max. Stocked Width:

Hardness:

65a

Attributes: Heat Resistant / High Temp, Troughable

1 of 1


Minimum Pulley Chart

Tension Rating	Min. Pulley Dia. (in)	Min. Pulley Dia. (mm)
Over 80%	16"	406.4 mm
60%-80%	14"	355.6 mm
40%-60%	12"	304.8 mm
Below 40%, tails, snubs	10"	254 mm

Features:

5-2733 is engineered for demanding high-temperature environments, offering a broad service temperature range with heat resistance up to 350°F for fines and 400°F for larger, intermittent lumps. Within its recommended operating limits, the compound formulation resists hardening, glazing, and surface cracking, ensuring consistent performance and extended belt life under thermal stress.

The belt incorporates a durable synthetic carcass designed for high abrasion resistance and long wear in harsh conditions. Its compound is also highly ozone-resistant, making it suitable for applications exposed to elevated temperatures and airborne oxidizers.

The 220 3/16″ x 1/16″ HT construction is ideal for foundries, metalworking plants, high-heat conveying zones, and applications where both thermal exposure and abrasion are present. It is widely used to convey hot castings, forgings, sand, fines, and other heat-laden materials.

Image	Fabrication	Description	Fabrication Type
	A1	Alligator Laced One End	Lacing
	AC-5	A Section Cleat - HT	Cleat
	B-1	2 Hole Bucket Punch (B-1)	Hole Punch
	B-2	3 Hole Bucket Punch (B-2)	Hole Punch
	B-3	4 Hole Bucket Punch (B-3)	Hole Punch
	B-4	5 Hole Bucket Punch (B-4)	Hole Punch
	B-5	6 Hole Bucket Punch (B-5)	Hole Punch
	B-6	5 Hole Bucket Punch (B-6)	Hole Punch
	B-7	7 Hole Bucket Punch (B-7)	Hole Punch
	BC-5	B Section Cleat - HT	Cleat
	BV-1	B Section V-Guide - Nitrile	V-Guide
	BVN-1	B Section V-Guide Notched - Nitrile	V-Guide
	CC-5	C Section Cleat - HT	Cleat
No image	CFFR2	Rivet Laced Both Ends – Cover Flap	Lacing
	CFS2	Staple Laced Both Ends – Cover Flap	Lacing
	CVN-1	C Section V-Guide Notched - Nitrile	V-Guide
	E-N	Endless - 2 Ply HT	Endless
	FH1	Hinge Laced One End	Lacing
	FH2	Hinge Laced Both Ends	Lacing
	FLG1S-1	1" High Siped Flange/Vanner - Nitrile	Flange
No image	FP3	Plate Prepared (Lacing Included)	Lacing
No image	FP3NL	Plate Prepared (No Lacing Included)	Lacing
No image	FR1	Rivet Laced One End	Lacing
No image	FR2	Rivet Laced Both Ends	Lacing
No image	HLFR2	Rivet Laced Both Ends – Hidden Laced	Lacing
No image	HLMFR2	Megalloy Rivet Laced Both Ends – Hidden Laced	Lacing
No image	HLSFR2	S/S Rivet Laced Both Ends – Hidden Laced	Lacing
No image	HP	Hole Punch	Hole Punch
	LONG - HW	Longitudinal Splice - HW	Longitudinal
No image	MFH1	Megalloy Hinge Laced One End	Lacing
No image	MFH2	Megalloy Hinge Laced Both Ends	Lacing
No image	MFR1	Megalloy Rivet Laced One End	Lacing
No image	MFR2	Megalloy Rivet Laced Both Ends	Lacing
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
	P-3	4 Hole Bucket Punch (P-3)	Hole Punch
	P-4	5 Hole Bucket Punch (P-4)	Hole Punch
	P-5	6 Hole Bucket Punch (P-5)	Hole Punch
	P-7	5 Hole Bucket Punch (P-7)	Hole Punch
	P-8	7 Hole Bucket Punch (P-8)	Hole Punch
	P-9	9 Hole Bucket Punch (P-9)	Hole Punch
No image	PE-N	Prepared Ends - 2 Ply HT	Endless
	Perforation	Perforation	Hole Punch
No image	RA1	Alligator Laced One End – Recessed	Lacing
No image	RFH1	Hinge Laced One End - Recessed	Lacing
No image	RFH2	Hinge Laced Both Ends - Recessed	Lacing
No image	RFP3	Plate Prepared (Lacing Included) - Recessed	Lacing
No image	RFP3NL	Plate Prepared (No Lacing Included) - Recessed	Lacing
No image	RFR1	Rivet Laced One End - Recessed	Lacing
No image	RFR2	Rivet Laced Both Ends – Recessed	Lacing
No image	RMFH1	Megalloy Hinge Laced One End - Recessed	Lacing
No image	RMFH2	Megalloy Hinge Laced Both Ends – Recessed	Lacing
No image	RMFR1	Megalloy Rivet Laced One End – Recessed	Lacing
No image	RMFR2	Megalloy Rivet Laced Both Ends - Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
No image	RSFH1	S/S Hinge Laced One End – Recessed	Lacing
No image	RSFH2	S/S Hinge Laced Both Ends – Recessed	Lacing
No image	RSFP3	S/S Plate Prepared- (Lacing Included) - Recessed	Lacing
No image	RSFR1	S/S Rivet Laced One End – Recessed	Lacing
No image	RSFR2	S/S Rivet Laced Both Ends – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSA1	S/S Alligator Laced One End – Recessed	Lacing
No image	RSSA2	S/S Alligator Laced Both Ends – Recessed	Lacing
	SC4-5	4" Scoop Cleat - HT	Cleat
No image	SFH1	S/S Hinge Laced One End	Lacing
	SFH2	S/S Hinge Laced Both Ends	Lacing
No image	SFP3	S/S Plate Prepared (Lacing Included)	Lacing
No image	SFR1	S/S Rivet Laced One End	Lacing
No image	SFR2	S/S Rivet Laced Both Ends	Lacing
	SS63HTCBS-FI	Super Screw 63, HT, Gal. Steel, CBS	Lacing
	SS63SBRCBS-SS-FI	Super Screw 63, SBR, Stainless Steel, CBS	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
