Part #: 5-3335

Part Number: 5-3335

Description:

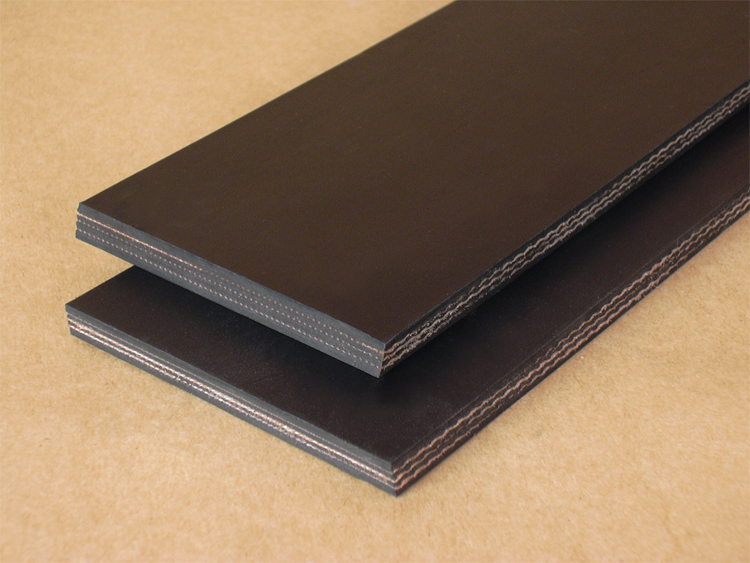

3 Ply 330 1/16 x 1/16 SCORF

Color:

Black

Plies:

3

Nominal OAG:

0.3

 +/-

0.03
Fabric:
Polyester/Nylon

Top Surface:

Smooth Cover
Top Cover Thickness:
0.0625

Bottom Surface:

Smooth Cover
Bottom Cover Thickness:
0.0625
Compound:
SCORF
Work Tension:
330

Elongation:

Less than 4%

Weight:

0.157

Working Temperature:

0 to 250

Max. Stocked Width:

72

Hardness:

65a
Attributes: Fire Retardant, Static Conductive to < 3 x 10^8 ohms OSHA 29 CFR, Oil Resistant, Troughable
1 of 1

Related Documents

Minimum Pulley Chart
Tension RatingMin. Pulley Dia. (in)Min. Pulley Dia. (mm)
Over 80%18"457.2 mm
60%-80%16"406.4 mm
40%-60%14"355.6 mm
Below 40%, tails, snubs12"304.8 mm

Related Documents

Features:

5-3335 is a static conductive, moderately oil-resistant, fire-retardant belt designed specifically for grain elevator service. This construction meets MSHA Part 14 requirements for grain handling applications but is not approved for underground mining use.

330 1/16″ × 1/16″ M-MOR-SC configuration provides an excellent balance of flexibility, strength, and bucket-bolt retention, making it a dependable choice for bucket elevator installations. Mulhern Belting can punch any bucket pattern required, including custom spacing and hole configurations for all major elevator manufacturers.

This belt is ideally suited for conveying Oily grains (corn, soybeans, canola, etc.), Wood chips and biomass, General agricultural bulk materials.

Its combination of MOR (Moderately Oil Resistant) properties, static conductive safety rating, and fire-retardant performance makes it a long-standing standard in grain processing and storage environments.

Fabrications for Belt Specification

Image Fabrication Description Fabrication Type
Fabrication 45CHEV05-7
45CHEV05-7 45 Degree Chevron - 1/2" x 1/2" Lug - MOR Chevron
Fabrication 90CHEV05-7
90CHEV05-7 90 Degree Chevron - 1/2" x 1/2" Lug - MOR Chevron
Fabrication 90CHEV1-7
90CHEV1-7 90 Degree Chevron - 1" x 1" Lug - MOR Chevron
Fabrication B-1
B-1 2 Hole Bucket Punch (B-1) Hole Punch
Fabrication B-2
B-2 3 Hole Bucket Punch (B-2) Hole Punch
Fabrication B-3
B-3 4 Hole Bucket Punch (B-3) Hole Punch
Fabrication B-4
B-4 5 Hole Bucket Punch (B-4) Hole Punch
Fabrication B-5
B-5 6 Hole Bucket Punch (B-5) Hole Punch
Fabrication B-6
B-6 5 Hole Bucket Punch (B-6) Hole Punch
Fabrication B-7
B-7 7 Hole Bucket Punch (B-7) Hole Punch
Fabrication B-8
B-8 9 Hole Bucket Punch (B-8) Hole Punch
Fabrication BV-7
BV-7 B Section V-Guide - MOR V-Guide
Fabrication BVN-7
BVN-7 B Section V-Guide Notched - MOR V-Guide
Fabrication CV-7
CV-7 C Section V-Guide - MOR V-Guide
Fabrication CVN-7
CVN-7 C Section V-Guide Notched - MOR V-Guide
Fabrication DV-7
DV-7 D Section V-Guide - MOR V-Guide
Fabrication DVN-7
DVN-7 D Section V-Guide Notched - MOR V-Guide
Fabrication E-L
E-L Endless - 3 Ply Lap Endless
Fabrication FH1
FH1 Flexco Hinge Laced One End Lacing
Fabrication FH2
FH2 Flexco Hinge Laced Both Ends Lacing
Fabrication FLG05-7
FLG05-7 1/2" High Flange - MOR Flange
Fabrication FLG105S-7
FLG105S-7 1-1/2" High Siped Flange - MOR Flange
Fabrication FLG1S-7
FLG1S-7 1" High Siped Flange - MOR Flange
No image FP3 Flexco Plate Prepared (Lacing Included) Lacing
No image FP3NL Flexco Plate Prepared (No Lacing Included) Lacing
No image FR1 Flexco Rivet Laced One End Lacing
No image FR2 Flexco Rivet Laced Both Ends Lacing
No image HP Hole Punch Hole Punch
Fabrication LONG - HW
LONG - HW Longitudinal Splice - HW Longitudinal
Fabrication LUG0505-7
LUG0505-7 1/2" x 1/2" Lug - MOR Cleat
Fabrication LUG11-7
LUG11-7 1" x 1" Lug - MOR Cleat
No image MFH1 Megalloy Flexco Hinge Laced One End Lacing
No image MFH2 Megalloy Flexco Hinge Laced Both Ends Lacing
No image MFR1 Megalloy Flexco Rivet Laced One End Lacing
No image MFR2 Megalloy Flexco Rivet Laced Both Ends Lacing
No image MS1 Megalloy Staple Laced One End Lacing
Fabrication P-1
P-1 2 Hole Bucket Punch (P-1) Hole Punch
Fabrication P-2
P-2 3 Hole Bucket Punch (P-2) Hole Punch
Fabrication P-3
P-3 4 Hole Bucket Punch (P-3) Hole Punch
Fabrication P-4
P-4 5 Hole Bucket Punch (P-4) Hole Punch
Fabrication P-5
P-5 6 Hole Bucket Punch (P-5) Hole Punch
Fabrication P-7
P-7 5 Hole Bucket Punch (P-7) Hole Punch
Fabrication P-8
P-8 7 Hole Bucket Punch (P-8) Hole Punch
Fabrication P-9
P-9 9 Hole Bucket Punch (P-9) Hole Punch
No image PE-L Prepared Ends- 3 Ply Lap Endless
Fabrication Perforation
Perforation Perforation Hole Punch
No image RMFH2 Megalloy Flexco Hinge Laced Both Ends – Recessed Lacing
No image RSFP3 S/S Flexco Plate Prepared- (Lacing Included) - Recessed Lacing
Fabrication S1
S1 Staple Laced One End Lacing
Fabrication S2
S2 Staple Laced Both Ends Lacing
No image SFH1 S/S Flexco Hinge Laced One End Lacing
Fabrication SFH2
SFH2 S/S Flexco Hinge Laced Both Ends Lacing
No image SFP3 S/S Flexco Plate Prepared (Lacing Included) Lacing
No image SFR2 S/S Flexco Rivet Laced Both Ends Lacing
Fabrication SI720
SI720 2" High Sidewall - MOR Sidewall
Fabrication SI740
SI740 4" High Sidewall - MOR Sidewall
Fabrication SIC305-7
SIC305-7 3-1/2" SI Cleat - MOR Cleat
Fabrication SIC505-7
SIC505-7 5-1/2" SI Cleat - MOR Cleat
Fabrication SIC700-7
SIC700-7 7" SI Cleat - MOR Cleat
Fabrication SS1
SS1 S/S Staple Laced One End Lacing
Fabrication SS2
SS2 S/S Staple Laced Both Ends Lacing
Fabrication SS63MORCBS-FI
SS63MORCBS-FI Super Screw 63, MOR, Gal. Steel, CBS Lacing
Fabrication SSA1
SSA1 S/S Alligator Laced One End Lacing
Fabrication SSA2
SSA2 S/S Alligator Laced Both Ends Lacing
Fabrication TC1-7
TC1-7 1" Tee Cleat - MOR Cleat
Fabrication TC2-7
TC2-7 2" Tee Cleat - MOR Cleat
