Part #: 5-3502

Part Number: 5-3502

Description: 3 Ply 225 1/8 X Bare MOR

Color : Black

Plies: 3

Nominal OAG:

0.25

+/-

0.03

Fabric:

Polyester/Nylon

Top Surface:

Smooth Cover

Top Cover Thickness:

0.125

Bottom Surface:

Bare

Compound:

MOR

Work Tension:

225

Elongation:

Less than 4%

Weight:

0.14

Minimum Pulley Diameter:

Working Temperature:

-20 to 225

Max. Stocked Width:

Hardness:

65a

Attributes: Oil Resistant, Troughable, Sliderbed Suitable

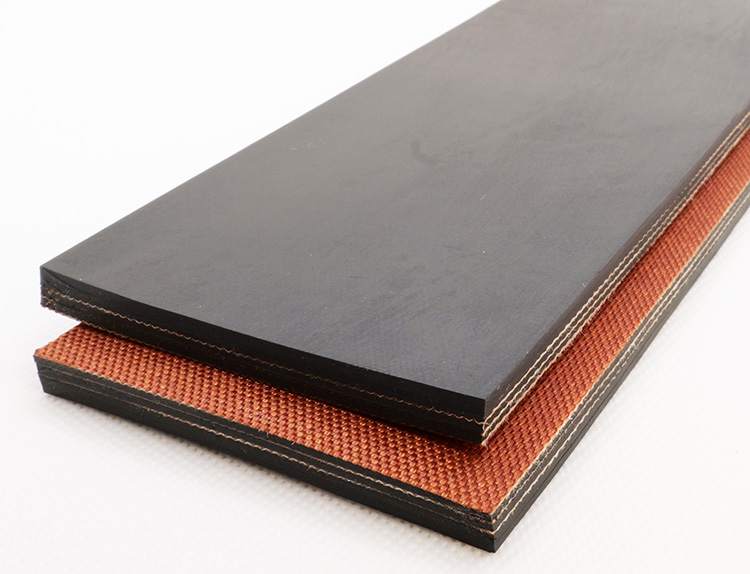

1 of 3 5214_photo.jpg

Features:

Mulhern Belting’s 5-3502 is built for durability and performance. This 3-ply 225 lb. belt features a moderate oil-resistant top cover and a low-friction bare bottom for use on slider beds and metal pans. It is a top choice to navigate small pulleys in demanding recycling and bulk material handling environments. The 3 ply construction is ideal for fastner retention and endless fabrication.

Image	Fabrication	Description	Fabrication Type
	45CHEV05-7	45 Degree Chevron - 1/2" x 1/2" Lug - MOR	Chevron
	90CHEV05-7	90 Degree Chevron - 1/2" x 1/2" Lug - MOR	Chevron
	90CHEV1-7	90 Degree Chevron - 1" x 1" Lug - MOR	Chevron
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-7	A Section Cleat - MOR	Cleat
	AV-7	A Section V-Guide - MOR	V-Guide
	AVN-7	A Section V-Guide Notched - MOR	V-Guide
	BC-7	B Section Cleat - MOR	Cleat
	BC1-7	1" Beefy Cleat - MOR	Cleat
	BC2-7	2" Beefy Cleat - MOR	Cleat
	BC3-7	3" Beefy Cleat - MOR	Cleat
	BC4-7	4" Beefy Cleat - MOR	Cleat
	BV-7	B Section V-Guide - MOR	V-Guide
	BVN-7	B Section V-Guide Notched - MOR	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CC-7	C Section Cleat - MOR	Cleat
	CFA2	Alligator Laced Both Ends – Cover Flap	Lacing
	CFC2	Clipper Laced Both Ends – Cover Flap	Lacing
	CFS2	Staple Laced Both Ends – Cover Flap	Lacing
	CFSS2	S/S Staple Laced Both Ends – Cover Flap	Lacing
	CFSSC2	S/S Clipper Laced Both Ends – Cover Flap	Lacing
	CSU1	Coated Steel Unibar One End	Lacing
	CSU2	Coated Steel Unibar Both Ends	Lacing
	CV-7	C Section V-Guide - MOR	V-Guide
	CVN-7	C Section V-Guide Notched - MOR	V-Guide
	DV-7	D Section V-Guide - MOR	V-Guide
	DVN-7	D Section V-Guide Notched - MOR	V-Guide
	E-L	Endless - 3 Ply Lap	Endless
	FH1	Flexco Hinge Laced One End	Lacing
	FH2	Flexco Hinge Laced Both Ends	Lacing
	FLG05-7	1/2" High Flange - MOR	Flange
	FLG05S-7	1/2" High Siped Flange - MOR	Flange
	FLG1-7	1" High Flange - MOR	Flange
	FLG105-7	1-1/2" High Flange - MOR	Flange
	FLG105S-2	1-1/2" High Siped Flange - SBR	Flange
	FLG105S-7	1-1/2" High Siped Flange - MOR	Flange
	FLG1S-7	1" High Siped Flange - MOR	Flange
No image	FP3	Flexco Plate Prepared (Lacing Included)	Lacing
No image	FP3NL	Flexco Plate Prepared (No Lacing Included)	Lacing
No image	FR1	Flexco Rivet Laced One End	Lacing
No image	FR2	Flexco Rivet Laced Both Ends	Lacing
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
	HLCSU2	Coated Steel Unibar Both Ends – Hidden Lace	Lacing
No image	HLS2	Staple Laced Both Ends – Hidden Lace	Lacing
No image	HLSSC2	S/S Clipper Laced Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	LONG - HW	Longitudinal Splice - HW	Longitudinal
	LUG0505-7	1/2" x 1/2" Lug - MOR	Cleat
	LUG11-7	1" x 1" Lug - MOR	Cleat
No image	MFH1	Megalloy Flexco Hinge Laced One End	Lacing
No image	MFH2	Megalloy Flexco Hinge Laced Both Ends	Lacing
No image	MFR1	Megalloy Flexco Rivet Laced One End	Lacing
No image	MFR2	Megalloy Flexco Rivet Laced Both Ends	Lacing
No image	MS1	Megalloy Staple Laced One End	Lacing
No image	MS2	Megalloy Staple Laced Both Ends	Lacing
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
	P-3	4 Hole Bucket Punch (P-3)	Hole Punch
	P-4	5 Hole Bucket Punch (P-4)	Hole Punch
	P-5	6 Hole Bucket Punch (P-5)	Hole Punch
	P-7	5 Hole Bucket Punch (P-7)	Hole Punch
	P-8	7 Hole Bucket Punch (P-8)	Hole Punch
	P-9	9 Hole Bucket Punch (P-9)	Hole Punch
No image	PE-B	Prepared Ends- 2 Ply Lap	Endless
No image	PE-O	Prepared Ends- 3 Ply HT	Endless
	Perforation	Perforation	Hole Punch
	Planer0505-7	1/2" x 1/2" Planer - MOR	Chevron
No image	RA1	Alligator Laced One End – Recessed	Lacing
No image	RA2	Alligator Laced Both Ends – Recessed	Lacing
	RC1	Clipper Laced One End - Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RCSU1	Coated Steel Unibar One End – Recessed	Lacing
No image	RCSU2	Coated Steel Unibar Both Ends – Recessed	Lacing
No image	RFH1	Flexco Hinge Laced One End - Recessed	Lacing
No image	RFH2	Flexco Hinge Laced Both Ends - Recessed	Lacing
No image	RFP3	Flexco Plate Prepared (Lacing Included) - Recessed	Lacing
No image	RFP3NL	Flexco Plate Prepared (No Lacing Included) - Recessed	Lacing
No image	RFR2	Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	RMFH1	Megalloy Flexco Hinge Laced One End - Recessed	Lacing
No image	RMFH2	Megalloy Flexco Hinge Laced Both Ends – Recessed	Lacing
No image	RMFR1	Megalloy Flexco Rivet Laced One End – Recessed	Lacing
No image	RMFR2	Megalloy Flexco Rivet Laced Both Ends - Recessed	Lacing
No image	RMS1	Megalloy Staple Laced One End – Recessed	Lacing
No image	RMS2	Megalloy Staple Laced Both Ends – Recessed	Lacing
No image	RP2	Plastic Rivet Laced Both Ends - Recessed	Lacing
	RS1	Staple Laced One End – Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
No image	RSFH1	S/S Flexco Hinge Laced One End – Recessed	Lacing
No image	RSFR2	S/S Flexco Rivet Laced Both Ends – Recessed	Lacing
	RSS1	S/S Staple Laced One End – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSA1	S/S Alligator Laced One End – Recessed	Lacing
No image	RSSA2	S/S Alligator Laced Both Ends – Recessed	Lacing
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing
	SC2-7	2" Scoop Cleat - MOR	Cleat
	SC3-7	3" Scoop Cleat - MOR	Cleat
	SC4-7	4" Scoop Cleat - MOR	Cleat
No image	SFH1	S/S Flexco Hinge Laced One End	Lacing
	SFH2	S/S Flexco Hinge Laced Both Ends	Lacing
No image	SFR1	S/S Flexco Rivet Laced One End	Lacing
No image	SFR2	S/S Flexco Rivet Laced Both Ends	Lacing
	SI720	2" High Sidewall - MOR	Sidewall
	SI725	2-1/2" High Sidewall - MOR	Sidewall
	SI730	3" High Sidewall - MOR	Sidewall
	SI735	3-1/2" High Sidewall - MOR	Sidewall
	SI740	4" High Sidewall - MOR	Sidewall
	SI745	4-1/2" High Sidewall - MOR	Sidewall
	SI750	5" High Sidewall - MOR	Sidewall
	SI755	5-1/2" High Sidewall - MOR	Sidewall
	SI760	6" High Sidewall - MOR	Sidewall
	SI765	6-1/2" High Fabric Reinforced Sidewall - MOR	Sidewall
	SI770	7" High Fabric Reinforced Sidewall - MOR	Sidewall
	SI775	7-1/2" High Fabric Reinforced Sidewall - MOR	Sidewall
	SI780	8" High Fabric Reinforced Sidewall - MOR	Sidewall
	SIC305-7	3-1/2" SI Cleat - MOR	Cleat
	SIC405-7	4-1/2" SI Cleat - MOR	Cleat
	SIC505-7	5-1/2" SI Cleat - MOR	Cleat
	SIC700-7	7" SI Cleat - MOR	Cleat
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
	TC1-7	1" Tee Cleat - MOR	Cleat
	TC105-7	1-1/2" Tee Cleat - MOR	Cleat
	TC2-7	2" Tee Cleat - MOR	Cleat
	TC3-7	3" Tee Cleat - MOR	Cleat
	TC4-7	4" Tee Cleat - MOR	Cleat
	TC5-7	5" Tee Cleat - MOR	T-Cleat
	VERSA100-7	Versa Cleat 1" - MOR	Chevron
No image	VERSA100D-7	Double Versa Cleat 1" - MOR	Chevron
	VERSA150-7	Versa Cleat 1-1/2" - MOR	Chevron
No image	VERSA150D-7	Double Versa Cleat 1-1/2" - MOR	Chevron
