Part #: 5-3532

Part Number: 5-3532

Description: 3 Ply 330 3/16 x 1/16 MOR
Color : Black
Plies: 3

Nominal OAG:

0.41

 +/-

0.03
Fabric:
Polyester/Nylon

Top Surface:

Smooth Cover
Top Cover Thickness:
0.1875

Bottom Surface:

Smooth Cover
Bottom Cover Thickness:
0.0625
Compound:
MOR
Work Tension:
330

Elongation:

Less than 4%

Weight:

0.217

Working Temperature:

-20 to 225

Max. Stocked Width:

84

Hardness:

65a
Attributes: Oil Resistant, Troughable

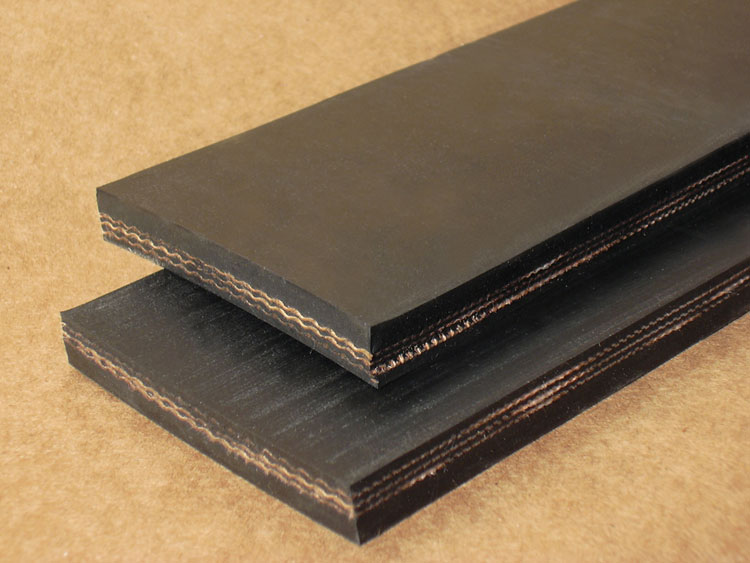

1 of 1 14_photo.jpg

Related Documents

Minimum Pulley Chart
Tension RatingMin. Pulley Dia. (in)Min. Pulley Dia. (mm)
Over 80%18"457.2 mm
60%-80%16"406.4 mm
40%-60%14"355.6 mm
Below 40%, tails, snubs12"304.8 mm
Features:

5-3532 features the same qualities of the 330 3/16 x 1/16 STD except that it is Moderately Oil Resistant (MOR). 330 3/16 x 1/16 MOR is used to convey oily grain and wood chips. It is popular in sewage treatment where moderate oil is a problem.

Fabrications for Belt Specification

Image Fabrication Description Fabrication Type
Fabrication 45CHEV05-7 45CHEV05-7 45 Degree Chevron - 1/2" x 1/2" Lug - MOR Chevron

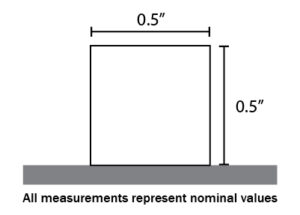

Fabrication 90CHEV05-7 90CHEV05-7 90 Degree Chevron - 1/2" x 1/2" Lug - MOR Chevron

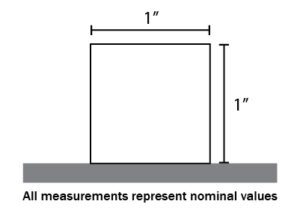

Fabrication 90CHEV1-7 90CHEV1-7 90 Degree Chevron - 1" x 1" Lug - MOR Chevron

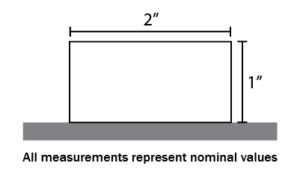

Fabrication 90SM12-7 90SM12-7 90 Degree Scrap Metal Chevron - 1" x 2" - MOR Chevron
Fabrication AC-7 AC-7 A Section Cleat - MOR Cleat
Fabrication AV-7 AV-7 A Section V-Guide - MOR V-Guide
Fabrication AVN-7 AVN-7 A Section V-Guide Notched - MOR V-Guide
Fabrication B-1 B-1 2 Hole Bucket Punch (B-1) Hole Punch
Fabrication B-2 B-2 3 Hole Bucket Punch (B-2) Hole Punch
Fabrication B-3 B-3 4 Hole Bucket Punch (B-3) Hole Punch
Fabrication B-4 B-4 5 Hole Bucket Punch (B-4) Hole Punch
Fabrication B-5 B-5 6 Hole Bucket Punch (B-5) Hole Punch
Fabrication B-6 B-6 5 Hole Bucket Punch (B-6) Hole Punch
Fabrication B-7 B-7 7 Hole Bucket Punch (B-7) Hole Punch
Fabrication B-8 B-8 9 Hole Bucket Punch (B-8) Hole Punch
Fabrication BC-7 BC-7 B Section Cleat - MOR Cleat
Fabrication BC1-7 BC1-7 1" Beefy Cleat - MOR Cleat
Fabrication BC2-7 BC2-7 2" Beefy Cleat - MOR Cleat
Fabrication BC3-7 BC3-7 3" Beefy Cleat - MOR Cleat
Fabrication BC4-7 BC4-7 4" Beefy Cleat - MOR Cleat
Fabrication BV-7 BV-7 B Section V-Guide - MOR V-Guide
Fabrication BVN-7 BVN-7 B Section V-Guide Notched - MOR V-Guide
Fabrication CC-7 CC-7 C Section Cleat - MOR Cleat
No image CFFR2 Flexco Rivet Laced Both Ends – Cover Flap Lacing
Fabrication CV-7 CV-7 C Section V-Guide - MOR V-Guide
Fabrication CVN-7 CVN-7 C Section V-Guide Notched - MOR V-Guide
Fabrication DV-7 DV-7 D Section V-Guide - MOR V-Guide
Fabrication DVN-7 DVN-7 D Section V-Guide Notched - MOR V-Guide
Fabrication E-L E-L Endless - 3 Ply Lap Endless
Fabrication FH1 FH1 Flexco Hinge Laced One End Lacing
Fabrication FH2 FH2 Flexco Hinge Laced Both Ends Lacing
Fabrication FLG05-7 FLG05-7 1/2" High Flange - MOR Flange
Fabrication FLG05S-7 FLG05S-7 1/2" High Siped Flange - MOR Flange
Fabrication FLG1-7 FLG1-7 1" High Flange - MOR Flange
Fabrication FLG105-7 FLG105-7 1-1/2" High Flange - MOR Flange
Fabrication FLG105S-7 FLG105S-7 1-1/2" High Siped Flange - MOR Flange
Fabrication FLG1S-7 FLG1S-7 1" High Siped Flange - MOR Flange
No image FP3 Flexco Plate Prepared (Lacing Included) Lacing
No image FP3NL Flexco Plate Prepared (No Lacing Included) Lacing
No image FR1 Flexco Rivet Laced One End Lacing
No image FR2 Flexco Rivet Laced Both Ends Lacing
No image HLFR2 Flexco Rivet Laced Both Ends – Hidden Laced Lacing
No image HP Hole Punch Hole Punch
Fabrication LONG - HW LONG - HW Longitudinal Splice - HW Longitudinal
Fabrication LUG0505-7 LUG0505-7 1/2" x 1/2" Lug - MOR Cleat
Fabrication LUG11-7 LUG11-7 1" x 1" Lug - MOR Cleat
No image MFH1 Megalloy Flexco Hinge Laced One End Lacing
No image MFH2 Megalloy Flexco Hinge Laced Both Ends Lacing
No image MFR1 Megalloy Flexco Rivet Laced One End Lacing
No image MFR2 Megalloy Flexco Rivet Laced Both Ends Lacing
Fabrication P-1 P-1 2 Hole Bucket Punch (P-1) Hole Punch
Fabrication P-2 P-2 3 Hole Bucket Punch (P-2) Hole Punch
Fabrication P-3 P-3 4 Hole Bucket Punch (P-3) Hole Punch
Fabrication P-4 P-4 5 Hole Bucket Punch (P-4) Hole Punch
Fabrication P-5 P-5 6 Hole Bucket Punch (P-5) Hole Punch
Fabrication P-7 P-7 5 Hole Bucket Punch (P-7) Hole Punch
Fabrication P-8 P-8 7 Hole Bucket Punch (P-8) Hole Punch
Fabrication P-9 P-9 9 Hole Bucket Punch (P-9) Hole Punch
No image PE-L Prepared Ends- 3 Ply Lap Endless
Fabrication Planer0505-7 Planer0505-7 1/2" x 1/2" Planer - MOR Chevron
No image RFH1 Flexco Hinge Laced One End - Recessed Lacing
No image RFH2 Flexco Hinge Laced Both Ends - Recessed Lacing
No image RFP3 Flexco Plate Prepared (Lacing Included) - Recessed Lacing
No image RFP3NL Flexco Plate Prepared (No Lacing Included) - Recessed Lacing
No image RFR1 Flexco Rivet Laced One End - Recessed Lacing
No image RFR2 Flexco Rivet Laced Both Ends – Recessed Lacing
No image RMFH1 Megalloy Flexco Hinge Laced One End - Recessed Lacing
No image RMFH2 Megalloy Flexco Hinge Laced Both Ends – Recessed Lacing
No image RMFR1 Megalloy Flexco Rivet Laced One End – Recessed Lacing
No image RMFR2 Megalloy Flexco Rivet Laced Both Ends - Recessed Lacing
No image RSFH1 S/S Flexco Hinge Laced One End – Recessed Lacing
No image RSFH2 S/S Flexco Hinge Laced Both Ends – Recessed Lacing
No image RSFP3 S/S Flexco Plate Prepared- (Lacing Included) - Recessed Lacing
No image RSFR1 S/S Flexco Rivet Laced One End – Recessed Lacing
No image RSFR2 S/S Flexco Rivet Laced Both Ends – Recessed Lacing
Fabrication SC2-7 SC2-7 2" Scoop Cleat - MOR Cleat
Fabrication SC3-7 SC3-7 3" Scoop Cleat - MOR Cleat
Fabrication SC4-7 SC4-7 4" Scoop Cleat - MOR Cleat
No image SFH1 S/S Flexco Hinge Laced One End Lacing
Fabrication SFH2 SFH2 S/S Flexco Hinge Laced Both Ends Lacing
No image SFP3 S/S Flexco Plate Prepared (Lacing Included) Lacing
No image SFR1 S/S Flexco Rivet Laced One End Lacing
No image SFR2 S/S Flexco Rivet Laced Both Ends Lacing
Fabrication SI720 SI720 2" High Sidewall - MOR Sidewall
Fabrication SI725 SI725 2-1/2" High Sidewall - MOR Sidewall
Fabrication SI730 SI730 3" High Sidewall - MOR Sidewall
Fabrication SI735 SI735 3-1/2" High Sidewall - MOR Sidewall
Fabrication SI740 SI740 4" High Sidewall - MOR Sidewall
Fabrication SI745 SI745 4-1/2" High Sidewall - MOR Sidewall
Fabrication SI750 SI750 5" High Sidewall - MOR Sidewall
Fabrication SI755 SI755 5-1/2" High Sidewall - MOR Sidewall
Fabrication SI760 SI760 6" High Sidewall - MOR Sidewall
Fabrication SI765 SI765 6-1/2" High Fabric Reinforced Sidewall - MOR Sidewall
Fabrication SI770 SI770 7" High Fabric Reinforced Sidewall - MOR Sidewall
Fabrication SI775 SI775 7-1/2" High Fabric Reinforced Sidewall - MOR Sidewall
Fabrication SI780 SI780 8" High Fabric Reinforced Sidewall - MOR Sidewall
Fabrication SIC305-7 SIC305-7 3-1/2" SI Cleat - MOR Cleat
Fabrication SIC405-7 SIC405-7 4-1/2" SI Cleat - MOR Cleat
Fabrication SIC505-7 SIC505-7 5-1/2" SI Cleat - MOR Cleat
Fabrication SIC700-7 SIC700-7 7" SI Cleat - MOR Cleat
Fabrication SS63HTCBS-FI SS63HTCBS-FI Super Screw 63, HT, Gal. Steel, CBS Lacing
Fabrication SS63MORCBS-FI SS63MORCBS-FI Super Screw 63, MOR, Gal. Steel, CBS Lacing
Fabrication SS63SBRCBS-FI SS63SBRCBS-FI Super Screw 63, SBR, Gal. Steel, CBS Lacing
Fabrication SS63SBRCBS-SS-FI SS63SBRCBS-SS-FI Super Screw 63, SBR, Stainless Steel, CBS Lacing
Fabrication TC1-7 TC1-7 1" Tee Cleat - MOR Cleat
Fabrication TC105-7 TC105-7 1-1/2" Tee Cleat - MOR Cleat
Fabrication TC2-7 TC2-7 2" Tee Cleat - MOR Cleat
Fabrication TC3-7 TC3-7 3" Tee Cleat - MOR Cleat
Fabrication TC4-7 TC4-7 4" Tee Cleat - MOR Cleat
Fabrication TC5-7 TC5-7 5" Tee Cleat - MOR T-Cleat
Fabrication VERSA100-7 VERSA100-7 Versa Cleat 1" - MOR Chevron
No image VERSA100D-7 Double Versa Cleat 1" - MOR Chevron
Fabrication VERSA150-7 VERSA150-7 Versa Cleat 1-1/2" - MOR Chevron
No image VERSA150D-7 Double Versa Cleat 1-1/2" - MOR Chevron
Download Spec Page

Part Number: 5-3532

Description: 3 Ply 330 3/16 x 1/16 MOR
Color : Black
Plies: 3
Nominal OAG: 0.41″
 +/- 0.03″
Fabric: Polyester/Nylon
Top Surface: Smooth Cover
Top Cover Thickness: 0.1875″
Bottom Surface: Smooth Cover
Bottom Cover Thickness: 0.0625″
Compound: MOR
Chemical Resistance Chart
Work Tension: 330 lbs./PIW
Elongation: Less than 4%
Weight: 0.217 lbs./PIW
Lacing Selection Chart
Minimum Pulley Diameter: 12″
Profile Min. Pulley Diameter Chart
Working Temperature (F): -20 to 225
Stock Width: 84″
Attributes: Oil Resistant, Troughable
Hardness: 65a
MinPulleyChart: 1
Minimum Pulley Chart:
Minimum Pulley Chart
5-3532 Close Up
Duration: [00:30]
Belt Guts – Anatomy of a Belt
Duration: [04:24]
Judging A Belt By Its Cover
Duration: [04:41]
Oil-Resistant Conveyor Belts Explained
Duration: [04:23]
Features:

5-3532 features the same qualities of the 330 3/16 x 1/16 STD except that it is Moderately Oil Resistant (MOR). 330 3/16 x 1/16 MOR is used to convey oily grain and wood chips. It is popular in sewage treatment where moderate oil is a problem.
