Part #: 5-3733

Part Number: 5-3733

Description:

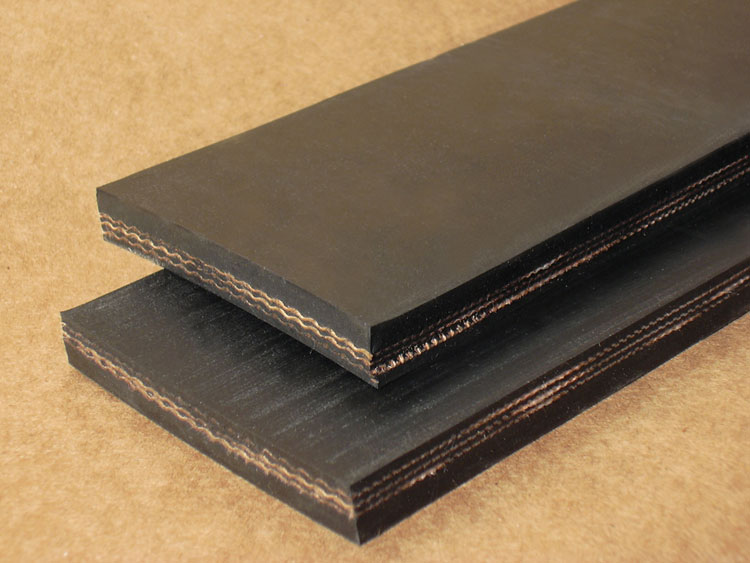

3 Ply 330 3/16 x 1/16 HT

Color:

Black

Plies:

Nominal OAG:

0.41

+/-

0.03

Fabric:

Polyester/Nylon

Top Surface:

Smooth Cover

Top Cover Thickness:

0.1875

Bottom Surface:

Smooth Cover

Bottom Cover Thickness:

0.0625

Compound:

EPDM

Work Tension:

330

Elongation:

Less than 4%

Weight:

0.217

Working Temperature:

-20 to 400

Max. Stocked Width:

Hardness:

65a

Attributes: Heat Resistant / High Temp, Troughable

1 of 1


Minimum Pulley Chart

Tension Rating	Min. Pulley Dia. (in)	Min. Pulley Dia. (mm)
Over 80%	18"	457.2 mm
60%-80%	16"	406.4 mm
40%-60%	14"	355.6 mm
Below 40%, tails, snubs	12"	304.8 mm

Features:

5-3733 is engineered for elevated-temperature environments, with heat resistance up to 350°F for fines and 400°F for larger lumps. The compound resists hardening, cracking, and ozone attack under normal operating conditions.

The 330 3/16″ × 1/16″ HT construction is widely used in foundries, metal processing, and other high-heat, high-abrasion applications.

Image	Fabrication	Description	Fabrication Type
	AC-5	A Section Cleat - HT	Cleat
	B-1	2 Hole Bucket Punch (B-1)	Hole Punch
	B-2	3 Hole Bucket Punch (B-2)	Hole Punch
	B-3	4 Hole Bucket Punch (B-3)	Hole Punch
	B-4	5 Hole Bucket Punch (B-4)	Hole Punch
	B-5	6 Hole Bucket Punch (B-5)	Hole Punch
	B-6	5 Hole Bucket Punch (B-6)	Hole Punch
	B-7	7 Hole Bucket Punch (B-7)	Hole Punch
	B-8	9 Hole Bucket Punch (B-8)	Hole Punch
	BC-5	B Section Cleat - HT	Cleat
	CC-5	C Section Cleat - HT	Cleat
	E-O	Endless - 3 Ply HT	Endless
	FH1	Flexco Hinge Laced One End	Lacing
	FH2	Flexco Hinge Laced Both Ends	Lacing
No image	FP3	Flexco Plate Prepared (Lacing Included)	Lacing
No image	FP3NL	Flexco Plate Prepared (No Lacing Included)	Lacing
No image	FR1	Flexco Rivet Laced One End	Lacing
No image	FR2	Flexco Rivet Laced Both Ends	Lacing
No image	HLMFH2	Megalloy Flexco Hinge Laced Both Ends – Hidden Laced	Lacing
No image	HLMFR2	Megalloy Flexco Rivet Laced Both Ends – Hidden Laced	Lacing
No image	HP	Hole Punch	Hole Punch
No image	MFR1	Megalloy Flexco Rivet Laced One End	Lacing
No image	MFR2	Megalloy Flexco Rivet Laced Both Ends	Lacing
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
	P-3	4 Hole Bucket Punch (P-3)	Hole Punch
	P-4	5 Hole Bucket Punch (P-4)	Hole Punch
	P-5	6 Hole Bucket Punch (P-5)	Hole Punch
	P-7	5 Hole Bucket Punch (P-7)	Hole Punch
	P-8	7 Hole Bucket Punch (P-8)	Hole Punch
	P-9	9 Hole Bucket Punch (P-9)	Hole Punch
No image	PE-O	Prepared Ends- 3 Ply HT	Endless
No image	RFH1	Flexco Hinge Laced One End - Recessed	Lacing
No image	RFH2	Flexco Hinge Laced Both Ends - Recessed	Lacing
No image	RFP3	Flexco Plate Prepared (Lacing Included) - Recessed	Lacing
No image	RFP3NL	Flexco Plate Prepared (No Lacing Included) - Recessed	Lacing
No image	RFR1	Flexco Rivet Laced One End - Recessed	Lacing
No image	RFR2	Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	RMFH1	Megalloy Flexco Hinge Laced One End - Recessed	Lacing
No image	RMFH2	Megalloy Flexco Hinge Laced Both Ends – Recessed	Lacing
No image	RMFR1	Megalloy Flexco Rivet Laced One End – Recessed	Lacing
No image	RMFR2	Megalloy Flexco Rivet Laced Both Ends - Recessed	Lacing
No image	RSFH1	S/S Flexco Hinge Laced One End – Recessed	Lacing
No image	RSFH2	S/S Flexco Hinge Laced Both Ends – Recessed	Lacing
No image	RSFP3	S/S Flexco Plate Prepared- (Lacing Included) - Recessed	Lacing
No image	RSFR1	S/S Flexco Rivet Laced One End – Recessed	Lacing
No image	RSFR2	S/S Flexco Rivet Laced Both Ends – Recessed	Lacing
	SC4-5	4" Scoop Cleat - HT	Cleat
No image	SFH1	S/S Flexco Hinge Laced One End	Lacing
	SFH2	S/S Flexco Hinge Laced Both Ends	Lacing
No image	SFP3	S/S Flexco Plate Prepared (Lacing Included)	Lacing
No image	SFR1	S/S Flexco Rivet Laced One End	Lacing
No image	SFR2	S/S Flexco Rivet Laced Both Ends	Lacing
	SS63HTCBS-FI	Super Screw 63, HT, Gal. Steel, CBS	Lacing
