Part #: 5-3733-MHT

Part Number: 5-3733-MHT

Description: 3 Ply 330 3/16 x 1/16 Maximum HT
Color : Black
Plies: 3

Nominal OAG:

0.41

 +/-

0.03
Fabric:
Polyester/Nylon

Top Surface:

Smooth Cover
Top Cover Thickness:
0.1875

Bottom Surface:

Smooth Cover
Bottom Cover Thickness:
0.0625
Compound:
EPM
Work Tension:
330

Elongation:

Less than 4%

Weight:

0.217

Working Temperature:

-20 to 700

Max. Stocked Width:

72

Hardness:

65a
Attributes: Heat Resistant / High Temp, Troughable

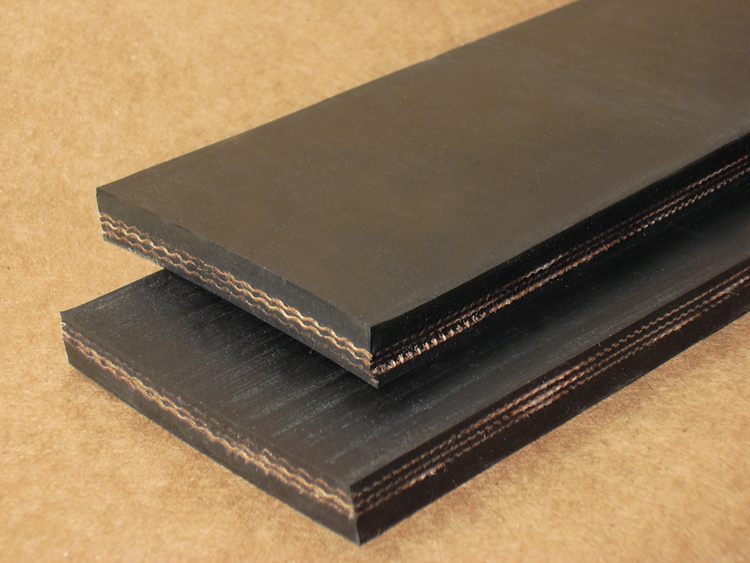

1 of 1 18_photo.jpg

Related Documents

Minimum Pulley Chart
Tension RatingMin. Pulley Dia. (in)Min. Pulley Dia. (mm)
Over 80%18"457.2 mm
60%-80%16"406.4 mm
40%-60%14"355.6 mm
Below 40%, tails, snubs12"304.8 mm
Features:

5-3733-MHT features a wide temperature range, with a high temperature approximately up to 400F (fines) and 700F (lumps). When used in it’s recommended service range it resists hardening and cracking. It is also highly ozone resistant. This product is also known as the 700 Degree belt. 330 3/16 x 1/16 Maximum High Temp is used in many high heat, high abrasion applications—such as a foundry.

Fabrications for Belt Specification

Image Fabrication Description Fabrication Type
Fabrication AC-5 AC-5 A Section Cleat - HT Cleat
Fabrication B-1 B-1 2 Hole Bucket Punch (B-1) Hole Punch
Fabrication B-2 B-2 3 Hole Bucket Punch (B-2) Hole Punch
Fabrication B-3 B-3 4 Hole Bucket Punch (B-3) Hole Punch
Fabrication B-4 B-4 5 Hole Bucket Punch (B-4) Hole Punch
Fabrication B-5 B-5 6 Hole Bucket Punch (B-5) Hole Punch
Fabrication B-6 B-6 5 Hole Bucket Punch (B-6) Hole Punch
Fabrication B-7 B-7 7 Hole Bucket Punch (B-7) Hole Punch
Fabrication B-8 B-8 9 Hole Bucket Punch (B-8) Hole Punch
Fabrication BC-5 BC-5 B Section Cleat - HT Cleat
Fabrication CC-5 CC-5 C Section Cleat - HT Cleat
Fabrication E-O E-O Endless - 3 Ply HT Endless
Fabrication FH1 FH1 Flexco Hinge Laced One End Lacing
Fabrication FH2 FH2 Flexco Hinge Laced Both Ends Lacing
Fabrication FLG1-1 FLG1-1 1" High Flange -- Flange
No image FP3 Flexco Plate Prepared (Lacing Included) Lacing
No image FP3NL Flexco Plate Prepared (No Lacing Included) Lacing
No image FR1 Flexco Rivet Laced One End Lacing
No image FR2 Flexco Rivet Laced Both Ends Lacing
No image HLFR2 Flexco Rivet Laced Both Ends – Hidden Laced Lacing
No image HLMFH2 Megalloy Flexco Hinge Laced Both Ends – Hidden Laced Lacing
No image HLMFR2 Megalloy Flexco Rivet Laced Both Ends – Hidden Laced Lacing
No image HLS2 Staple Laced Both Ends – Hidden Lace Lacing
No image HP Hole Punch Hole Punch
No image MFR1 Megalloy Flexco Rivet Laced One End Lacing
No image MFR2 Megalloy Flexco Rivet Laced Both Ends Lacing
Fabrication P-1 P-1 2 Hole Bucket Punch (P-1) Hole Punch
Fabrication P-2 P-2 3 Hole Bucket Punch (P-2) Hole Punch
Fabrication P-3 P-3 4 Hole Bucket Punch (P-3) Hole Punch
Fabrication P-4 P-4 5 Hole Bucket Punch (P-4) Hole Punch
Fabrication P-5 P-5 6 Hole Bucket Punch (P-5) Hole Punch
Fabrication P-7 P-7 5 Hole Bucket Punch (P-7) Hole Punch
Fabrication P-8 P-8 7 Hole Bucket Punch (P-8) Hole Punch
Fabrication P-9 P-9 9 Hole Bucket Punch (P-9) Hole Punch
No image PE-O Prepared Ends- 3 Ply HT Endless
No image RFH1 Flexco Hinge Laced One End - Recessed Lacing
No image RFH2 Flexco Hinge Laced Both Ends - Recessed Lacing
No image RFP3 Flexco Plate Prepared (Lacing Included) - Recessed Lacing
No image RFP3NL Flexco Plate Prepared (No Lacing Included) - Recessed Lacing
No image RFR1 Flexco Rivet Laced One End - Recessed Lacing
No image RFR2 Flexco Rivet Laced Both Ends – Recessed Lacing
No image RMFH1 Megalloy Flexco Hinge Laced One End - Recessed Lacing
No image RMFH2 Megalloy Flexco Hinge Laced Both Ends – Recessed Lacing
No image RMFR1 Megalloy Flexco Rivet Laced One End – Recessed Lacing
No image RMFR2 Megalloy Flexco Rivet Laced Both Ends - Recessed Lacing
No image RSFH1 S/S Flexco Hinge Laced One End – Recessed Lacing
No image RSFH2 S/S Flexco Hinge Laced Both Ends – Recessed Lacing
No image RSFP3 S/S Flexco Plate Prepared- (Lacing Included) - Recessed Lacing
No image RSFR1 S/S Flexco Rivet Laced One End – Recessed Lacing
No image RSFR2 S/S Flexco Rivet Laced Both Ends – Recessed Lacing
Fabrication SC4-5 SC4-5 4" Scoop Cleat - HT Cleat
No image SFH1 S/S Flexco Hinge Laced One End Lacing
Fabrication SFH2 SFH2 S/S Flexco Hinge Laced Both Ends Lacing
No image SFP3 S/S Flexco Plate Prepared (Lacing Included) Lacing
No image SFR1 S/S Flexco Rivet Laced One End Lacing
No image SFR2 S/S Flexco Rivet Laced Both Ends Lacing
Fabrication SS63HTCBS-FI SS63HTCBS-FI Super Screw 63, HT, Gal. Steel, CBS Lacing
Download Spec Page

Part Number: 5-3733-MHT

Description: 3 Ply 330 3/16 x 1/16 Maximum HT
Color : Black
Plies: 3
Nominal OAG: 0.41″
 +/- 0.03″
Fabric: Polyester/Nylon
Top Surface: Smooth Cover
Top Cover Thickness: 0.1875″
Bottom Surface: Smooth Cover
Bottom Cover Thickness: 0.0625″
Compound: EPM
Chemical Resistance Chart
Work Tension: 330 lbs./PIW
Elongation: Less than 4%
Weight: 0.217 lbs./PIW
Lacing Selection Chart
Minimum Pulley Diameter: 12″
Profile Min. Pulley Diameter Chart
Working Temperature (F): -20 to 700
Stock Width: 72″
Attributes: Heat Resistant / High Temp, Troughable
Hardness: 65a
MinPulleyChart: 1
Minimum Pulley Chart:
Minimum Pulley Chart
5-3733-MHT Close Up
Duration: [00:30]
Belt Guts – Anatomy of a Belt
Duration: [04:24]
Cooking with High Temp Belt
Duration: [04:08]
Judging A Belt By Its Cover
Duration: [04:41]
Features:

5-3733-MHT features a wide temperature range, with a high temperature approximately up to 400F (fines) and 700F (lumps). When used in it’s recommended service range it resists hardening and cracking. It is also highly ozone resistant. This product is also known as the 700 Degree belt. 330 3/16 x 1/16 Maximum High Temp is used in many high heat, high abrasion applications—such as a foundry.
