Part #: 5-3734

Part Number: 5-3734

Description:

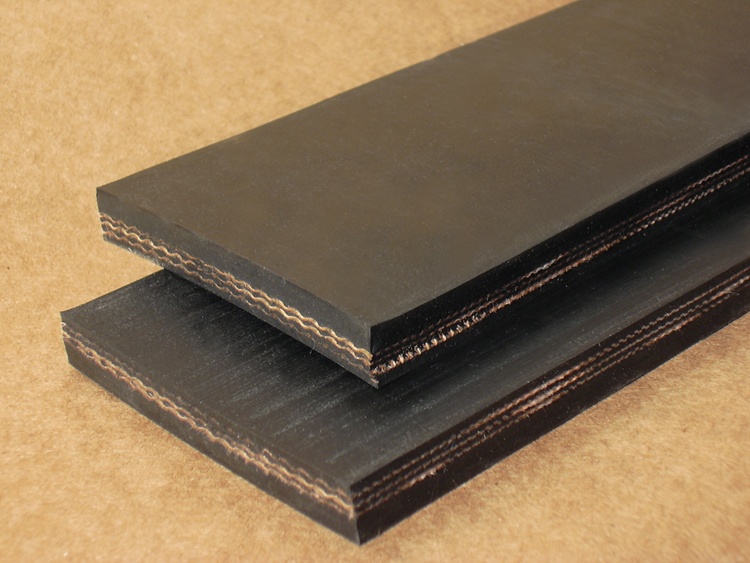

3 Ply 330 3/16 X 1/16 Hot Asphalt

Color:

Black

Plies:

Nominal OAG:

0.41

+/-

0.03

Fabric:

Polyester/Nylon

Top Surface:

Smooth Cover

Top Cover Thickness:

0.1875

Bottom Surface:

Smooth Cover

Bottom Cover Thickness:

0.0625

Compound:

SOR

Work Tension:

330

Elongation:

Less than 4%

Weight:

0.217

Working Temperature:

-20 to 350

Max. Stocked Width:

Hardness:

65a

Attributes: Oil Resistance ASTM D471 70C/72hrs/IRM903 < 20% Swell, Troughable, Oil Resistant

1 of 1


Minimum Pulley Chart

Tension Rating	Min. Pulley Dia. (in)	Min. Pulley Dia. (mm)
Over 80%	18"	457.2 mm
60%-80%	16"	406.4 mm
40%-60%	14"	355.6 mm
Below 40%, tails, snubs	12"	304.8 mm

Features:

5-3734 is formulated for applications requiring both heat resistance and moderate oil resistance. The compound remains flexible up to 350°F and provides good abrasion performance in demanding conditions.

The 330 3/16″ × 1/16″ HA configuration is ideal for conveying hot asphalt, oily grains, oil-treated coal, and other materials where heat and oil exposure occur together.

Image	Fabrication	Description	Fabrication Type
	90CHEV05-7	90 Degree Chevron - 1/2" x 1/2" Lug - MOR	Chevron
	AV-7	A Section V-Guide - MOR	V-Guide
	AVN-7	A Section V-Guide Notched - MOR	V-Guide
	B-1	2 Hole Bucket Punch (B-1)	Hole Punch
	B-2	3 Hole Bucket Punch (B-2)	Hole Punch
	B-3	4 Hole Bucket Punch (B-3)	Hole Punch
	B-4	5 Hole Bucket Punch (B-4)	Hole Punch
	B-5	6 Hole Bucket Punch (B-5)	Hole Punch
	B-6	5 Hole Bucket Punch (B-6)	Hole Punch
	B-7	7 Hole Bucket Punch (B-7)	Hole Punch
	B-8	9 Hole Bucket Punch (B-8)	Hole Punch
	BV-7	B Section V-Guide - MOR	V-Guide
	BVN-7	B Section V-Guide Notched - MOR	V-Guide
	CV-7	C Section V-Guide - MOR	V-Guide
	CVN-7	C Section V-Guide Notched - MOR	V-Guide
	DVN-4	D Section V-Guide Notched - HA	V-Guide
	FH1	Flexco Hinge Laced One End	Lacing
	FH2	Flexco Hinge Laced Both Ends	Lacing
	FLG1S-1	1" High Siped Flange - Nitrile	Flange
No image	FP3	Flexco Plate Prepared (Lacing Included)	Lacing
No image	FP3NL	Flexco Plate Prepared (No Lacing Included)	Lacing
No image	FR1	Flexco Rivet Laced One End	Lacing
No image	FR2	Flexco Rivet Laced Both Ends	Lacing
No image	HP	Hole Punch	Hole Punch
No image	MFH1	Megalloy Flexco Hinge Laced One End	Lacing
No image	MFH2	Megalloy Flexco Hinge Laced Both Ends	Lacing
No image	MFR1	Megalloy Flexco Rivet Laced One End	Lacing
No image	MFR2	Megalloy Flexco Rivet Laced Both Ends	Lacing
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
	P-3	4 Hole Bucket Punch (P-3)	Hole Punch
	P-4	5 Hole Bucket Punch (P-4)	Hole Punch
	P-5	6 Hole Bucket Punch (P-5)	Hole Punch
	P-7	5 Hole Bucket Punch (P-7)	Hole Punch
	P-8	7 Hole Bucket Punch (P-8)	Hole Punch
	P-9	9 Hole Bucket Punch (P-9)	Hole Punch
No image	PE-L	Prepared Ends- 3 Ply Lap	Endless
	Planer0505-2	1/2" x 1/2" Planer - SBR	Chevron
	Planer0505-7	1/2" x 1/2" Planer - MOR	Chevron
No image	RFH1	Flexco Hinge Laced One End - Recessed	Lacing
No image	RFH2	Flexco Hinge Laced Both Ends - Recessed	Lacing
No image	RFP3	Flexco Plate Prepared (Lacing Included) - Recessed	Lacing
No image	RFP3NL	Flexco Plate Prepared (No Lacing Included) - Recessed	Lacing
No image	RFR1	Flexco Rivet Laced One End - Recessed	Lacing
No image	RFR2	Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	RMFH1	Megalloy Flexco Hinge Laced One End - Recessed	Lacing
No image	RMFH2	Megalloy Flexco Hinge Laced Both Ends – Recessed	Lacing
No image	RMFR1	Megalloy Flexco Rivet Laced One End – Recessed	Lacing
No image	RMFR2	Megalloy Flexco Rivet Laced Both Ends - Recessed	Lacing
No image	RSFH1	S/S Flexco Hinge Laced One End – Recessed	Lacing
No image	RSFH2	S/S Flexco Hinge Laced Both Ends – Recessed	Lacing
No image	RSFP3	S/S Flexco Plate Prepared- (Lacing Included) - Recessed	Lacing
No image	RSFR1	S/S Flexco Rivet Laced One End – Recessed	Lacing
No image	RSFR2	S/S Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	SFH1	S/S Flexco Hinge Laced One End	Lacing
	SFH2	S/S Flexco Hinge Laced Both Ends	Lacing
No image	SFP3	S/S Flexco Plate Prepared (Lacing Included)	Lacing
No image	SFR1	S/S Flexco Rivet Laced One End	Lacing
No image	SFR2	S/S Flexco Rivet Laced Both Ends	Lacing
	SS63HTCBS-FI	Super Screw 63, HT, Gal. Steel, CBS	Lacing
	TC4-2	4" Tee Cleat - SBR	Cleat
	VERSA100-2	Versa Cleat 1" - SBR	Chevron
