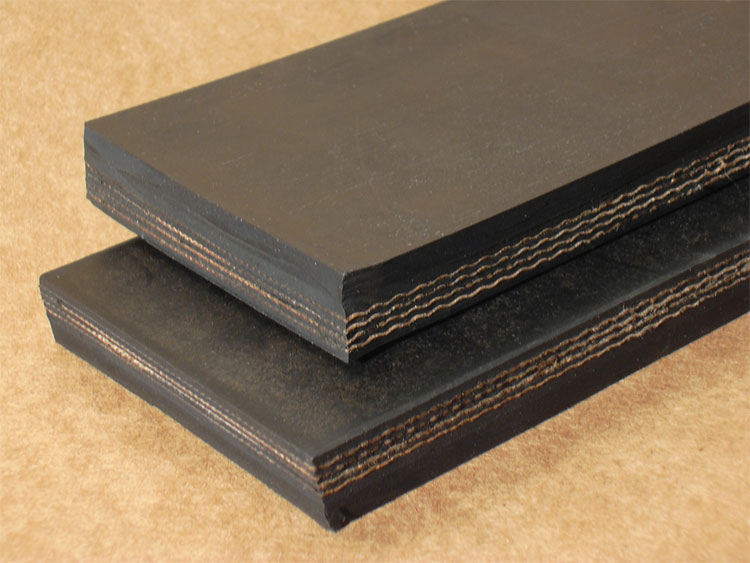

Part #: 5-4832

Part Number: 5-4832

Description:

4 Ply 440 1/4 x 1/16 MOR

Color:

Black

Plies:

Nominal OAG:

0.5

+/-

0.03

Fabric:

Polyester/Nylon

Top Surface:

Smooth Cover

Top Cover Thickness:

0.25

Bottom Surface:

Smooth Cover

Bottom Cover Thickness:

0.0625

Compound:

MOR

Work Tension:

440

Elongation:

Less than 4%

Weight:

0.27

Working Temperature:

-20 to 225

Max. Stocked Width:

Hardness:

65a

Attributes: Oil Resistant, Troughable

1 of 1


Minimum Pulley Chart

Tension Rating	Min. Pulley Dia. (in)	Min. Pulley Dia. (mm)
Over 80%	24"	609.6 mm
60%-80%	20"	508 mm
40%-60%	18"	457.2 mm
Below 40%, tails, snubs	16"	406.4 mm

Features:

5-4832 features the same qualities of the 440 1/4 x 1/16 STD except that it is Moderately Oil Resistant (MOR). 440 1/4 x 1/16 MOR is used to convey oily grain and wood chips. It is popular in sewage treatment where moderate oil is a problem.

Image	Fabrication	Description	Fabrication Type
	45CHEV05-2	45 Degree Chevron - 1/2" x 1/2" Lug - SBR	Chevron
	90CHEV05-2	90 Degree Chevron - 1/2" x 1/2" Lug - SBR	Chevron
	90CHEV1-2	90 Degree Chevron - 1" x 1" Lug - SBR	Chevron
	90SM12-2	90 Degree Scrap Metal Chevron - 1" x 2" - SBR	Chevron
	AC-2	A Section Cleat - SBR	Cleat
	AV-2	A Section V-Guide - SBR	V-Guide
	AVN-2	A Section V-Guide Notched - SBR	V-Guide
	B-1	2 Hole Bucket Punch (B-1)	Hole Punch
	B-2	3 Hole Bucket Punch (B-2)	Hole Punch
	B-3	4 Hole Bucket Punch (B-3)	Hole Punch
	B-4	5 Hole Bucket Punch (B-4)	Hole Punch
	B-5	6 Hole Bucket Punch (B-5)	Hole Punch
	B-6	5 Hole Bucket Punch (B-6)	Hole Punch
	B-7	7 Hole Bucket Punch (B-7)	Hole Punch
	B-8	9 Hole Bucket Punch (B-8)	Hole Punch
	BC-2	B Section Cleat - SBR	Cleat
	BC1-2	1" Beefy Cleat - SBR	Cleat
	BC2-2	2" Beefy Cleat - SBR	Cleat
	BC3-2	3" Beefy Cleat - SBR	Cleat
	BC4-2	4" Beefy Cleat - SBR	Cleat
	BV-2	B Section V-Guide - SBR	V-Guide
	BVN-2	B Section V-Guide Notched - SBR	V-Guide
	CC-2	C Section Cleat - SBR	Cleat
No image	CFFR2	Flexco Rivet Laced Both Ends – Cover Flap	Lacing
No image	CFSFR2	S/S Flexco Rivet Laced Both Ends – Cover Flap	Lacing
	CV-2	C Section V-Guide - SBR	V-Guide
	CVN-2	C Section V-Guide Notched - SBR	V-Guide
	DV-2	D Section V-Guide - SBR	V-Guide
	DVN-2	D Section V-Guide Notched - SBR	V-Guide
	E-M	Endless - 4 Ply Lap	Endless
	FH1	Flexco Hinge Laced One End	Lacing
	FH2	Flexco Hinge Laced Both Ends	Lacing
	FLG05-2	1/2" High Flange - SBR	Flange
	FLG05S-2	1/2" High Siped Flange - SBR	Flange
	FLG1-2	1" High Flange - SBR	Flange
	FLG105-2	1-1/2" High Flange - SBR	Flange
	FLG105S-2	1-1/2" High Siped Flange - SBR	Flange
	FLG1S-2	1" High Siped Flange - SBR	Flange
No image	FP3	Flexco Plate Prepared (Lacing Included)	Lacing
No image	FP3NL	Flexco Plate Prepared (No Lacing Included)	Lacing
No image	FR1	Flexco Rivet Laced One End	Lacing
No image	FR2	Flexco Rivet Laced Both Ends	Lacing
No image	HLFR2	Flexco Rivet Laced Both Ends – Hidden Laced	Lacing
No image	HLMFR2	Megalloy Flexco Rivet Laced Both Ends – Hidden Laced	Lacing
No image	HLSFR2	S/S Flexco Rivet Laced Both Ends – Hidden Laced	Lacing
No image	HP	Hole Punch	Hole Punch
	LONG - HW	Longitudinal Splice - HW	Longitudinal
	LUG0505-2	1/2" x 1/2" Lug - SBR	Cleat
	LUG11-2	1" x 1" Lug - SBR	Cleat
No image	MFH1	Megalloy Flexco Hinge Laced One End	Lacing
No image	MFH2	Megalloy Flexco Hinge Laced Both Ends	Lacing
No image	MFR1	Megalloy Flexco Rivet Laced One End	Lacing
No image	MFR2	Megalloy Flexco Rivet Laced Both Ends	Lacing
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
	P-3	4 Hole Bucket Punch (P-3)	Hole Punch
	P-4	5 Hole Bucket Punch (P-4)	Hole Punch
	P-5	6 Hole Bucket Punch (P-5)	Hole Punch
	P-7	5 Hole Bucket Punch (P-7)	Hole Punch
	P-8	7 Hole Bucket Punch (P-8)	Hole Punch
	P-9	9 Hole Bucket Punch (P-9)	Hole Punch
No image	PE-M	Prepared Ends- 4 Ply Lap	Endless
	Perforation	Perforation	Hole Punch
	Planer0505-2	1/2" x 1/2" Planer - SBR	Chevron
	Planer0505-7	1/2" x 1/2" Planer - MOR	Chevron
No image	RFH1	Flexco Hinge Laced One End - Recessed	Lacing
No image	RFH2	Flexco Hinge Laced Both Ends - Recessed	Lacing
No image	RFP3	Flexco Plate Prepared (Lacing Included) - Recessed	Lacing
No image	RFP3NL	Flexco Plate Prepared (No Lacing Included) - Recessed	Lacing
No image	RFR1	Flexco Rivet Laced One End - Recessed	Lacing
No image	RFR2	Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	RMFH1	Megalloy Flexco Hinge Laced One End - Recessed	Lacing
No image	RMFH2	Megalloy Flexco Hinge Laced Both Ends – Recessed	Lacing
No image	RMFR1	Megalloy Flexco Rivet Laced One End – Recessed	Lacing
No image	RMFR2	Megalloy Flexco Rivet Laced Both Ends - Recessed	Lacing
No image	RSFH1	S/S Flexco Hinge Laced One End – Recessed	Lacing
No image	RSFH2	S/S Flexco Hinge Laced Both Ends – Recessed	Lacing
No image	RSFP3	S/S Flexco Plate Prepared- (Lacing Included) - Recessed	Lacing
No image	RSFR1	S/S Flexco Rivet Laced One End – Recessed	Lacing
No image	RSFR2	S/S Flexco Rivet Laced Both Ends – Recessed	Lacing
No image	RSSA2	S/S Alligator Laced Both Ends – Recessed	Lacing
	SC2-2	2" Scoop Cleat - SBR	Cleat
	SC3-2	3" Scoop Cleat - SBR	Cleat
	SC4-2	4" Scoop Cleat - SBR	Cleat
No image	SFH1	S/S Flexco Hinge Laced One End	Lacing
	SFH2	S/S Flexco Hinge Laced Both Ends	Lacing
No image	SFP3	S/S Flexco Plate Prepared (Lacing Included)	Lacing
No image	SFR1	S/S Flexco Rivet Laced One End	Lacing
No image	SFR2	S/S Flexco Rivet Laced Both Ends	Lacing
	SI220	2" High Sidewall - SBR	Sidewall
	SI225	2-1/2" High Sidewall - SBR	Sidewall
	SI230	3" High Sidewall - SBR	Sidewall
	SI235	3-1/2" High Sidewall - SBR	Sidewall
	SI240	4" High Sidewall - SBR	Sidewall
	SI245	4-1/2" High Sidewall - SBR	Sidewall
	SI250	5" High Sidewall - SBR	Sidewall
	SI255	5-1/2" High Sidewall - SBR	Sidewall
	SI260	6" High Sidewall - SBR	Sidewall
	SI765	6-1/2" High Fabric Reinforced Sidewall - MOR	Sidewall
	SI770	7" High Fabric Reinforced Sidewall - MOR	Sidewall
	SI775	7-1/2" High Fabric Reinforced Sidewall - MOR	Sidewall
	SI780	8" High Fabric Reinforced Sidewall - MOR	Sidewall
	SIC305-2	3-1/2" SI Cleat - SBR	Cleat
	SIC405-2	4-1/2" SI Cleat - SBR	Cleat
	SIC505-2	5-1/2" SI Cleat - SBR	Cleat
	SIC700-2	7" SI Cleat - SBR	Cleat
	SM1020-2	1" x 2" Scrap Metal Lug - SBR	Cleat
	SS105SBRCBS-FI	Super Screw 105, SBR, Gal. Steel, CBS	Lacing
	SS180ARCBS-FI	Super Screw 180, Abrasion Resistant, Gal. Steel, CBS	Lacing
	SS200MSHACBS-FI	Super Screw 200, MSHA/MOR , Gal. Steel, CBS	Lacing
	SS63SBRCBS-SS-FI	Super Screw 63, SBR, Stainless Steel, CBS	Lacing
	SS80MORCBS-FI	Super Screw 80, MOR, Gal. Steel, CBS	Lacing
	SS80SBRCBS-FI	Super Screw 80, SBR, Gal. Steel, CBS	Lacing
	SS80SBRCBS-SS-FI	Super Screw 80, SBR, Stainless Steel, CBS	Lacing
	TC1-2	1" Tee Cleat - SBR	Cleat
	TC105-2	1-1/2" Tee Cleat - SBR	Cleat
	TC2-2	2" Tee Cleat - SBR	Cleat
	TC3-2	3" Tee Cleat - SBR	Cleat
	TC4-2	4" Tee Cleat - SBR	Cleat
	TC5-2	5" Tee Cleat - SBR	T-Cleat
	VERSA100-2	Versa Cleat 1" - SBR	Chevron
No image	VERSA100D-2	Double Versa Cleat 1" - SBR	Chevron
	VERSA150-2	Versa Cleat 1-1/2" - SBR	Chevron
No image	VERSA150D-2	Double Versa Cleat 1-1/2" - SBR	Chevron
