Part #: 5-6111

Part Number: 5-6111

Description: M15 Open Chevron, 2 Ply 220 3/16 x 1/16
Color : Black
Plies: 2
Nominal OAG: 0.92″
 +/- 0.03″
 Recessed OAG: 0.36″
Fabric: Polyester/Nylon
Top Surface: Green Cured Chevron Pattern
Top Cover Thickness: 0.1875″
Bottom Surface: Smooth Cover
Bottom Cover Thickness: 0.0625″
Compound: SBR
Work Tension: 220 lbs./PIW
Elongation: Less than 4%
Weight: 0.217 lbs./PIW
Working Temperature (F): -20 to 250
Attributes: Troughable
Hardness: 65a
Minimum Pulley Chart:
Minimum Pulley Chart
Features:

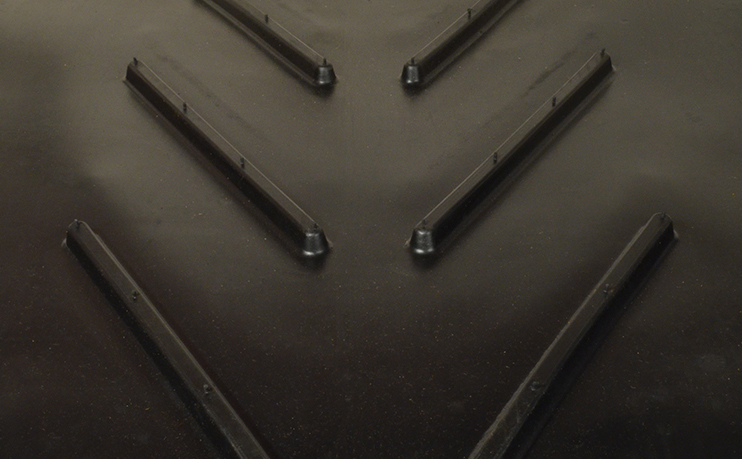

5-6111 is a green cured chevron belt. It is available 26″, 28″, 31.5″, 36″, 42″ and 48″ wide. This belt is popular in screening applications and where a tough, durable chevron pattern is required.

Part Number: 5-6111

Description: M15 Open Chevron, 2 Ply 220 3/16 x 1/16
Color : Black
Plies: 2
Nominal OAG: 0.92″
 +/- 0.03″
 Recessed OAG: 0.36″
Fabric: Polyester/Nylon
Top Surface: Green Cured Chevron Pattern
Top Cover Thickness: 0.1875″
Bottom Surface: Smooth Cover
Bottom Cover Thickness: 0.0625″
Compound: SBR
Work Tension: 220 lbs./PIW
Elongation: Less than 4%
Weight: 0.217 lbs./PIW
Working Temperature (F): -20 to 250
Attributes: Troughable
Hardness: 65a
MinPulleyChart: 1
Features:

5-6111 is a green cured chevron belt. It is available 26″, 28″, 31.5″, 36″, 42″ and 48″ wide. This belt is popular in screening applications and where a tough, durable chevron pattern is required.
