Part #: 5-6211

Part Number: 5-6211

Description: M15 Open Chevron, 3 Ply 330 3/16 x 1/16
Color : Black
Plies: 3
Fabric:
Polyester/Nylon

Top Surface:

Green Cured Chevron Pattern
Top Cover Thickness:
0.1875

Bottom Surface:

Smooth Cover
Bottom Cover Thickness:
0.0625
Compound:
SBR
Work Tension:
330

Elongation:

Less than 1%

Weight:

0.217

Working Temperature:

-20 to 250

Max. Stocked Width:

48
Attributes: Troughable

Hardness:

65a
Minimum Pulley Chart:
Tension RatingMin. Pulley Dia. (in)Min. Pulley Dia. (mm)
Over 80%18"457.2 mm
60%-80%16"406.4 mm
40%-60%14"355.6 mm
Below 40%, tails, snubs12"304.8 mm
Features:

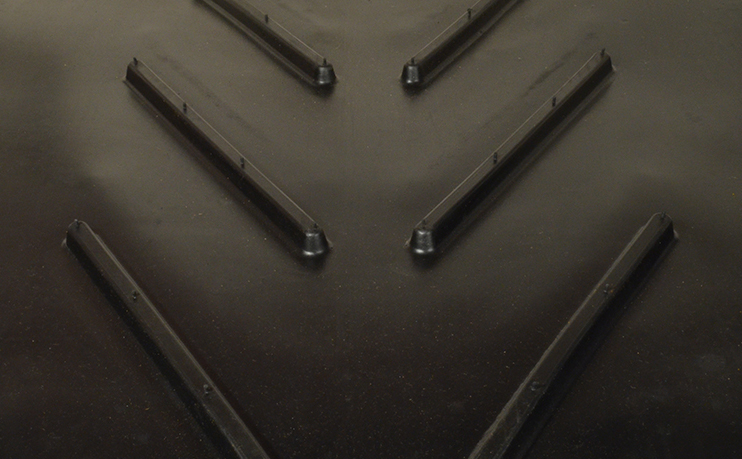

5-6211 is a green cured chevron belt. It is available 48″ wide. This belt is popular in screening applications and where a tough, durable chevron pattern is required.

Gallery

Part Number: 5-6211

Description: M15 Open Chevron, 3 Ply 330 3/16 x 1/16
Color : Black
Plies: 3
Fabric: Polyester/Nylon
Top Surface: Green Cured Chevron Pattern
Top Cover Thickness: 0.1875″
Bottom Surface: Smooth Cover
Bottom Cover Thickness: 0.0625″
Compound: SBR
Work Tension: 330 lbs./PIW
Elongation: Less than 1%
Weight: 0.217 lbs./PIW
Minimum Pulley Diameter: 12″
Working Temperature (F): -20 to 250
Stock Width: 48″
Attributes: Troughable
Hardness: 65a
MinPulleyChart: 1
Minimum Pulley Chart:
Minimum Pulley Chart
Features:

5-6211 is a green cured chevron belt. It is available 48″ wide. This belt is popular in screening applications and where a tough, durable chevron pattern is required.
