Part #: 5-6531-CF33

Part Number: 5-6531-CF33

Description:

2 Ply, 220 1/8″ x 1/16″ Feeder Belt

Color:

Black

Plies:

2
Fabric:
Polyester/Nylon

Top Surface:

Smooth Cover
Top Cover Thickness:
0.125

Bottom Surface:

Smooth Cover
Bottom Cover Thickness:
0.0625
Compound:
SBR
Work Tension:
220

Elongation:

Less than 4%

Weight:

0.217

Working Temperature:

-20 to 250

Hardness:

65a
Attributes: Abrasion Resistant
Minimum Pulley Chart
Tension RatingMin. Pulley Dia. (in)Min. Pulley Dia. (mm)
Over 80%16"406.4 mm
60%-80%14"355.6 mm
40%-60%12"304.8 mm
Below 40%, tails, snubs10"254 mm
Features:

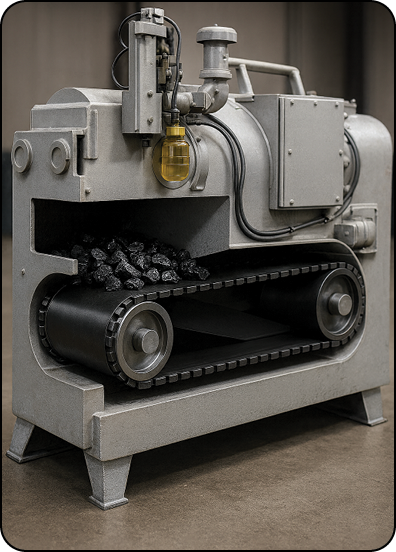

5-6531-CF33 is a specially designed feeder belt featuring green cured 1.5″ tall, notched Vanner Edges on the top cover and a modified D-Section V-Guide centered on the bottom cover. This belt is popular in Coal Feeder applications.
