Part #: 5-8642

Part Number: 5-8642

Description: 2 Ply 150 Mini-Bite 1/32″ x Bare
Color : Black
Plies: 2

Nominal OAG:

0.29

 +/-

0.03
Fabric:
Polyester

Top Surface:

Mini-Bucket Profile
Top Cover Thickness:
0.0312

Bottom Surface:

Bare
Compound:
SBR
Work Tension:
150

Elongation:

Less than 4%

Weight:

0.085

Minimum Pulley Diameter:

8

Working Temperature:

-25 to 250

Max. Stocked Width:

72

Hardness:

65a
Attributes: Troughable

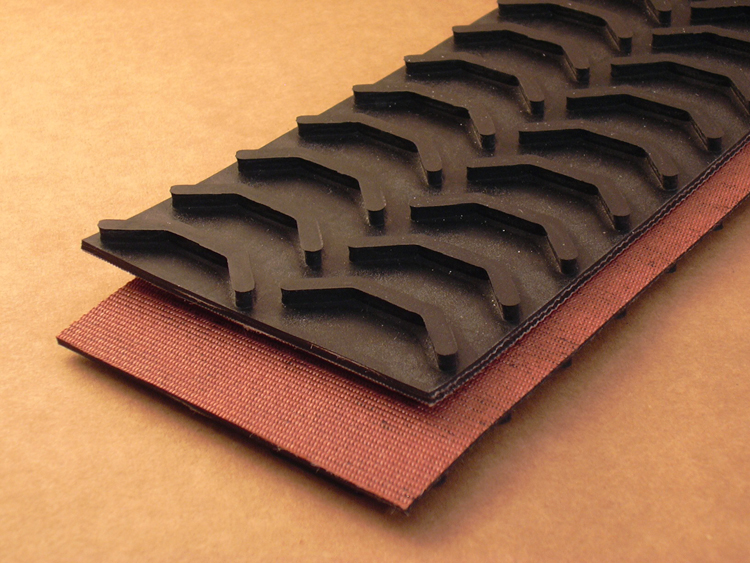

736_photo.jpg 736_photo1.jpg 736_photo2.jpg
1 of 3 736_photo.jpg

Related Documents

Features:

5-8642 features a 3/16″ high by 1-3/4″ wide bucket profile in a staggered pattern. The cleats are spaced on 2″ centers across the belt and 1″ centers down the length. The OAG of the belt includes the profile. 2 Ply 150 Mini-Bite 1/32″ x Bare is popular for carrying gravel, dirt and sands. It is also used in the recycling industry.

Fabrications for Belt Specification

Image Fabrication Description Fabrication Type
Fabrication AC-2 AC-2 A Section Cleat - SBR Cleat
Fabrication AV-2 AV-2 A Section V-Guide - SBR V-Guide
Fabrication BC-2 BC-2 B Section Cleat - SBR Cleat
Fabrication BC1-2 BC1-2 1" Beefy Cleat - SBR Cleat
Fabrication BV-2 BV-2 B Section V-Guide - SBR V-Guide
Fabrication BVN-2 BVN-2 B Section V-Guide Notched - SBR V-Guide
Fabrication CC-2 CC-2 C Section Cleat - SBR Cleat
Fabrication CV-2 CV-2 C Section V-Guide - SBR V-Guide
Fabrication CVN-2 CVN-2 C Section V-Guide Notched - SBR V-Guide
Fabrication CVN-6 CVN-6 C Section N-Guide Notched - RAV V-Guide
Fabrication E-B E-B Endless - 2 Ply Lap Endless
Fabrication FH1 FH1 Flexco Hinge Laced One End Lacing
Fabrication FH2 FH2 Flexco Hinge Laced Both Ends Lacing
Fabrication FLG105S-2 FLG105S-2 1-1/2" High Siped Flange - SBR Flange
No image HLC2 Clipper Laced Both Ends – Hidden Lace Lacing
Fabrication LONG - HW LONG - HW Longitudinal Splice - HW Longitudinal
No image MFH1 Megalloy Flexco Hinge Laced One End Lacing
No image MFH2 Megalloy Flexco Hinge Laced Both Ends Lacing
No image PE-B Prepared Ends- 2 Ply Lap Endless
No image PE-O Prepared Ends- 3 Ply HT Endless
Fabrication Perforation Perforation Perforation Hole Punch
No image RA1 Alligator Laced One End – Recessed Lacing
No image RA2 Alligator Laced Both Ends – Recessed Lacing
Fabrication RC1 RC1 Clipper Laced One End - Recessed Lacing
Fabrication RC2 RC2 Clipper Laced Both Ends - Recessed Lacing
No image RCSU1 Coated Steel Unibar One End – Recessed Lacing
No image RCSU2 Coated Steel Unibar Both Ends – Recessed Lacing
No image RFH1 Flexco Hinge Laced One End - Recessed Lacing
No image RFH2 Flexco Hinge Laced Both Ends - Recessed Lacing
No image RFP3NL Flexco Plate Prepared (No Lacing Included) - Recessed Lacing
No image RFR1 Flexco Rivet Laced One End - Recessed Lacing
No image RFR2 Flexco Rivet Laced Both Ends – Recessed Lacing
No image RMFR2 Megalloy Flexco Rivet Laced Both Ends - Recessed Lacing
No image RMS1 Megalloy Staple Laced One End – Recessed Lacing
No image RMS2 Megalloy Staple Laced Both Ends – Recessed Lacing
No image RP2 Plastic Rivet Laced Both Ends - Recessed Lacing
Fabrication RS1 RS1 Staple Laced One End – Recessed Lacing
Fabrication RS2 RS2 Staple Laced Both Ends – Recessed Lacing
No image RSFR2 S/S Flexco Rivet Laced Both Ends – Recessed Lacing
Fabrication RSS1 RSS1 S/S Staple Laced One End – Recessed Lacing
No image RSS2 S/S Staple Laced Both Ends – Recessed Lacing
No image RSSA1 S/S Alligator Laced One End – Recessed Lacing
No image RSSA2 S/S Alligator Laced Both Ends – Recessed Lacing
Fabrication RSSC1 RSSC1 S/S Clipper Laced One End - Recessed Lacing
Fabrication RSSC2 RSSC2 S/S Clipper Laced Both Ends - Recessed Lacing
No image RSSU1 S/S Unibar One End – Recessed Lacing
No image RSSU2 S/S Unibar Both Ends – Recessed Lacing
No image SFH1 S/S Flexco Hinge Laced One End Lacing
Fabrication SFH2 SFH2 S/S Flexco Hinge Laced Both Ends Lacing
Fabrication SI220 SI220 2" High Sidewall - SBR Sidewall
Fabrication SI225 SI225 2-1/2" High Sidewall - SBR Sidewall
Fabrication SI230 SI230 3" High Sidewall - SBR Sidewall
Fabrication SI235 SI235 3-1/2" High Sidewall - SBR Sidewall
Fabrication SI240 SI240 4" High Sidewall - SBR Sidewall
Fabrication SI245 SI245 4-1/2" High Sidewall - SBR Sidewall
Fabrication SI250 SI250 5" High Sidewall - SBR Sidewall
Fabrication TC1-2 TC1-2 1" Tee Cleat - SBR Cleat
Fabrication TC2-2 TC2-2 2" Tee Cleat - SBR Cleat
Fabrication TC3-2 TC3-2 3" Tee Cleat - SBR Cleat
Download Spec Page

Part Number: 5-8642

Description: 2 Ply 150 Mini-Bite 1/32″ x Bare
Color : Black
Plies: 2
Nominal OAG: 0.29″
 +/- 0.03″
 Recessed OAG: 0″
Fabric: Polyester
Top Surface: Mini-Bucket Profile
Top Cover Thickness: 0.0312″
Bottom Surface: Bare
Compound: SBR
Chemical Resistance Chart
Work Tension: 150 lbs./PIW
Elongation: Less than 4%
Weight: 0.085 lbs./PIW
Lacing Selection Chart
Minimum Pulley Diameter: 8″
Profile Min. Pulley Diameter Chart
Working Temperature (F): -25 to 250
Stock Width: 72″
Attributes: Troughable
Hardness: 65a
MinPulleyChart: 0
5-8642 Close Up
Duration: [00:30]
Belt Guts – Anatomy of a Belt
Duration: [04:24]
Judging A Belt By Its Cover
Duration: [04:41]
Features:

5-8642 features a 3/16″ high by 1-3/4″ wide bucket profile in a staggered pattern. The cleats are spaced on 2″ centers across the belt and 1″ centers down the length. The OAG of the belt includes the profile. 2 Ply 150 Mini-Bite 1/32″ x Bare is popular for carrying gravel, dirt and sands. It is also used in the recycling industry.
