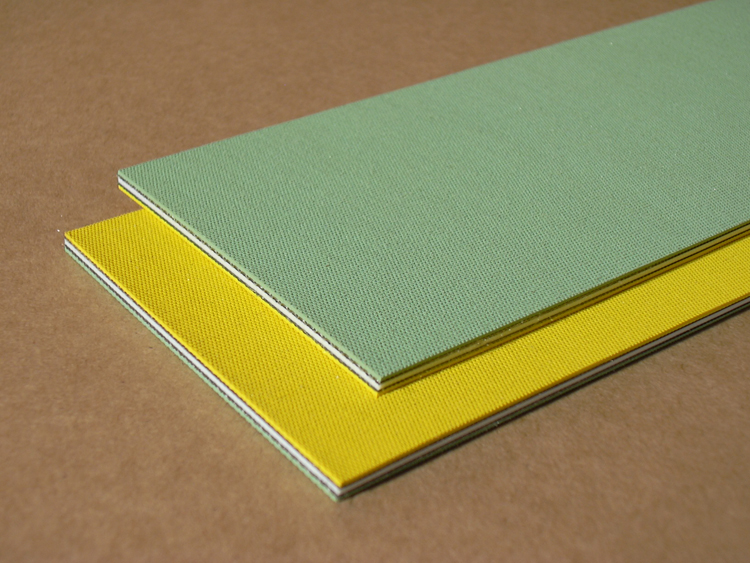

Part #: 6-1440

Part Number: 6-1440

Description: FG-14/40F
Color : Green
Plies: 2
Nominal OAG: 0.16″
 +/- 0.0156″
Fabric: Polyamide
Top Surface: Green Rough Texture
Bottom Surface: Yellow Rough Texture
Compound: NBR
Work Tension: 40 lbs./PIW
Weight: 0.073 lbs./PIW
Minimum Pulley Diameter: 1.6″
Back Flex Min. Pulley Diameter: 2.4″
Working Temperature (F): -4 to 212
Features:

6-1440 features an abrasion resistant top and bottom cover and an adhesive-free splice. 6-1440 is a 4mm thick folder-gluer belt. It has also been used as a live roller drive belt.
