Part #: 6-1450

Part Number: 6-1450

Description: FG-14/50F
Color : Green
Plies: 2
Nominal OAG: 0.2″
 +/- 0.0156″
Fabric: Polyamide
Top Surface: Green Rough Texture
Bottom Surface: Yellow Rough Texture
Compound: NBR
Work Tension: 40 lbs./PIW
Elongation: Less than 1%
Weight: 0.098 lbs./PIW
Minimum Pulley Diameter: 2″
Back Flex Min. Pulley Diameter: 3″
Working Temperature (F): -4 to 212
Features:

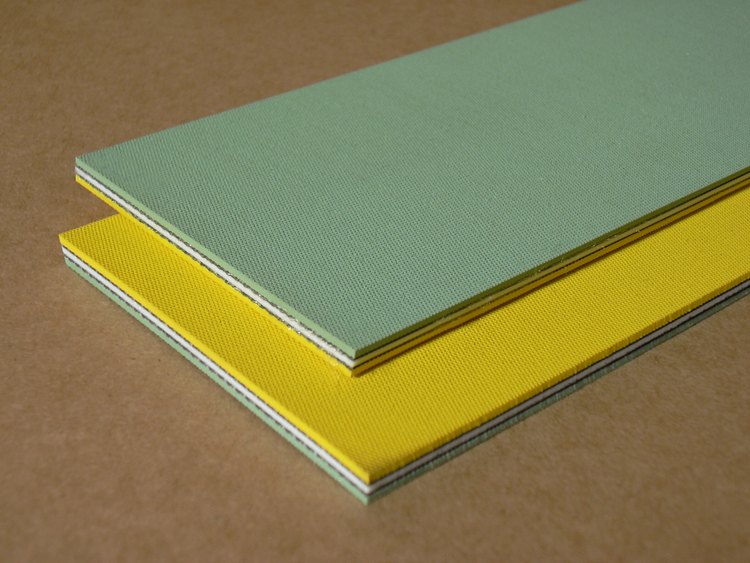

6-1450 features an abrasion resistant top and bottom cover and an adhesive-free splice. 6-1450 is a 5mm thick folder-gluer belt. It has also been used as a live roller drive belt.

Gallery

Part Number: 6-1450

Description: FG-14/50F
Color : Green
Plies: 2
Nominal OAG: 0.2″
 +/- 0.0156″
Fabric: Polyamide
Top Surface: Green Rough Texture
Bottom Surface: Yellow Rough Texture
Compound: NBR
Work Tension: 40 lbs./PIW
Elongation: Less than 1%
Weight: 0.098 lbs./PIW
Minimum Pulley Diameter: 2″
Back Flex Min. Pulley Diameter: 3″
Working Temperature (F): -4 to 212
MinPulleyChart: 0
Features:

6-1450 features an abrasion resistant top and bottom cover and an adhesive-free splice. 6-1450 is a 5mm thick folder-gluer belt. It has also been used as a live roller drive belt.
