Part #: 6-8055

Part Number: 6-8055

Description: FG-80/55F
Color : Blue
Plies: 3

Nominal OAG:

0.217

 +/-

Fabric:
Polyester

Top Surface:

Rough Texture

Bottom Surface:

Rough Texture
Compound:
XNBR
Work Tension:
55

Elongation:

Less than 1%

Weight:

0.098

Minimum Pulley Diameter:

2.76

Back Flex Min. Pulley Diameter:

4.14

Working Temperature:

0 to 176
Attributes: Anti-Static
Features:

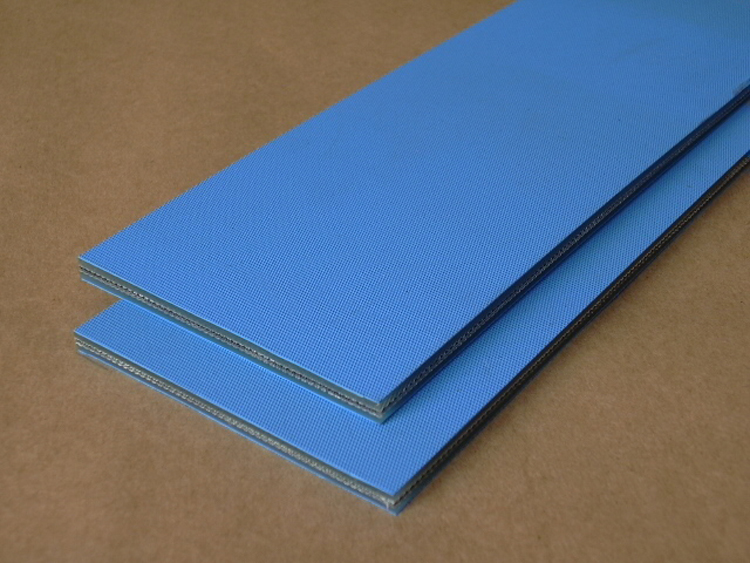

This belt features an abrasion resistant top and bottom cover and an adhesive-free splice. FG-80/55F is a 5.5mm thick folder-gluer belt.

Gallery

Part Number: 6-8055

Description: FG-80/55F
Color : Blue
Plies: 3
Nominal OAG: 0.217″
Fabric: Polyester
Top Surface: Rough Texture
Bottom Surface: Rough Texture
Compound: XNBR
Work Tension: 55 lbs./PIW
Elongation: Less than 1%
Weight: 0.098 lbs./PIW
Minimum Pulley Diameter: 2.76″
Back Flex Min. Pulley Diameter: 4.14″
Working Temperature (F): 0 to 176
Attributes: Anti-Static
MinPulleyChart: 0
Features:

This belt features an abrasion resistant top and bottom cover and an adhesive-free splice. FG-80/55F is a 5.5mm thick folder-gluer belt.
