Part #: 1-5001

Part Number: 1-5001

Description:

3 Ply Meat Cleat

Color:

White

Plies:

Nominal OAG:

0.255

+/-

0.02

Recessed OAG:

0.17

Fabric:

Polyester

Top Surface:

Meat Cleat Impression

Bottom Surface:

Friction Surface

Compound:

NBR

Work Tension:

150

Elongation:

Less than 2%

Weight:

0.1

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

3.5

Working Temperature:

0 to 250

Max. Stocked Width:

Top Cover Coefficient of Friction/Steel:

Bottom Cover Coefficient of Friction/Steel:

0.3

Attributes: FDA Compliant, Oil Resistant, Sliderbed Suitable

1 of 3

1-5001 Close Up

Features:

1-5001 incorporates a specialized fabric treatment designed to deliver the highest possible ply adhesion while minimizing moisture absorption, ensuring long-term durability and consistent performance. Users should consult the chemical-resistance chart when selecting cleaning agents to maintain compound compatibility and sanitation standards.

3 Ply Meat Cleat is widely used in meat and poultry processing facilities for conveying raw product up inclines. Its construction provides strong traction and dependable product control, while its oil-, grease-, and solvent-resistant properties make it ideal for environments with frequent washdowns and exposure to fats and processing fluids.

Image	Fabrication	Description	Fabrication Type
	A2	Alligator Laced Both Ends	Lacing

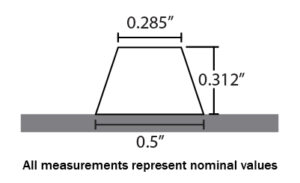

	AC-1	A Section Cleat - Nitrile	Cleat
	AV-1	A Section V-Guide - Nitrile	V-Guide
	AVN-1	A Section V-Guide Notched - Nitrile	V-Guide
	BC-1	B Section Cleat - Nitrile	Cleat

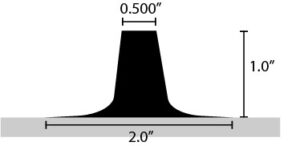

	BC1-1	1" Beefy Cleat - White Nitrile	Cleat

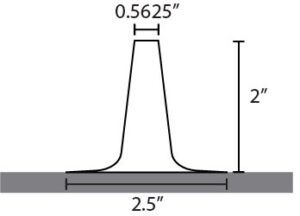

	BC2-1	2" Beefy Cleat - Nitrile	Cleat

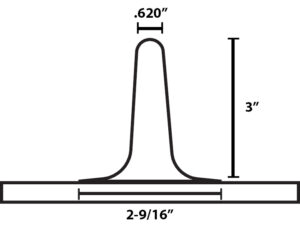

	BC3-2	3" Beefy Cleat - SBR	Cleat
	BV-1	B Section V-Guide - Nitrile	V-Guide

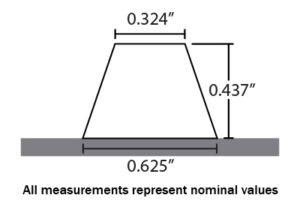

	BVN-1	B Section V-Guide Notched - Nitrile	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CC-1	C Section Cleat - Nitrile	Cleat
	CFC2	Clipper Laced Both Ends – Cover Flap	Lacing
	CFSSC2	S/S Clipper Laced Both Ends – Cover Flap	Lacing
	CSU1	Coated Steel Unibar One End	Lacing
	CSU2	Coated Steel Unibar Both Ends	Lacing

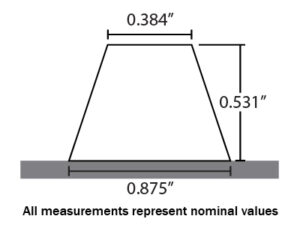

	CVN-1	C Section V-Guide Notched - Nitrile	V-Guide
	DV-1	D Section V-Guide - Nitrile	V-Guide

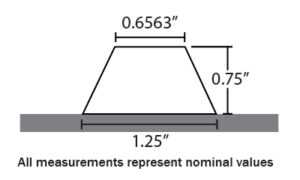

	DVN-1	D Section V-Guide Notched - Nitrile	V-Guide
	E-A	Endless - Lap Splice	Endless

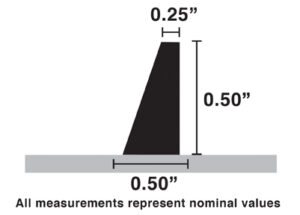

	FLG05-1	1/2" High Flange	Flange
	FLG05S-1	1/2" High Siped Flange - White Nitrile	Flange

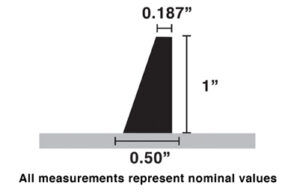

	FLG1-1	1" High Flange --	Flange

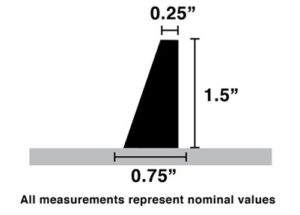

	FLG105-1	1-1/2" High Flange	Flange
	FLG105S-1	1-1/2" High Siped Flange - White Nitrile	Flange
	FLG1S-1	1" High Siped Flange - Nitrile	Flange
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
No image	HLSSC2	S/S Clipper Laced Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	LONG - LW	Longitudinal Splice - LW	Longitudinal

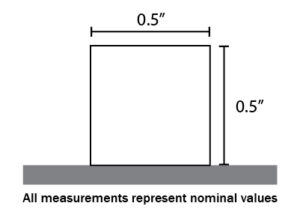

	LUG0505-1	1/2" x 1/2" Lug - Nitrile	Cleat

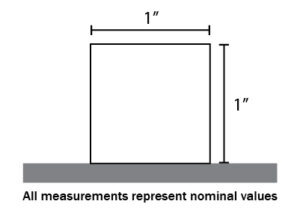

	LUG11-1	1" x 1" Lug - White Nitrile	Cleat
No image	MS1	Megalloy Staple Laced One End	Lacing
No image	MS2	Megalloy Staple Laced Both Ends	Lacing
	P-1	2 Hole Bucket Punch (P-1)	Hole Punch
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
	P-3	4 Hole Bucket Punch (P-3)	Hole Punch
	P-4	5 Hole Bucket Punch (P-4)	Hole Punch
	P-5	6 Hole Bucket Punch (P-5)	Hole Punch
	P-7	5 Hole Bucket Punch (P-7)	Hole Punch
	P-8	7 Hole Bucket Punch (P-8)	Hole Punch
	P-9	9 Hole Bucket Punch (P-9)	Hole Punch
	P1	Plastic Rivet Laced One End	Lacing
	P2	Plastic Rivet Laced Both Ends	Lacing
No image	PE-A	Prepared Ends - Lap Splice	Endless
	Perforation	Perforation	Hole Punch
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RP2	Plastic Rivet Laced Both Ends - Recessed	Lacing
No image	RSFR2	S/S Flexco Rivet Laced Both Ends – Recessed	Lacing
	RSS1	S/S Staple Laced One End – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing

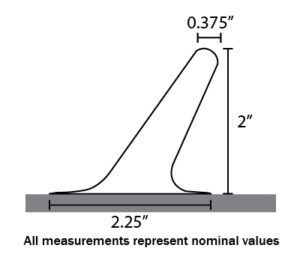

	SC2-1	2" Scoop Cleat - White Nitrile	Cleat

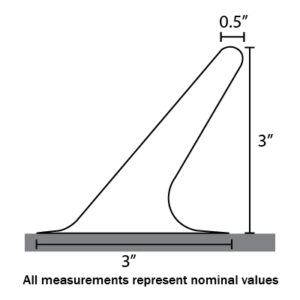

	SC3-1	3" Scoop Cleat - White Nitrile	Cleat

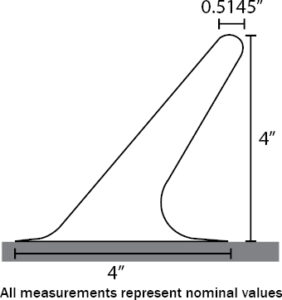

	SC4-1	4" Scoop Cleat - White Nitrile	Cleat
	SL2	Spiral Laced Both Ends	Lacing

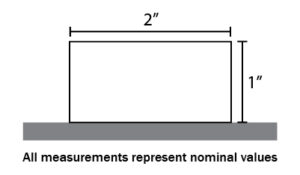

	SM1020-1	1" x 2" Scrap Metal Lug - White Nitrile	Cleat
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC1	S/S Clipper Laced One End	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing

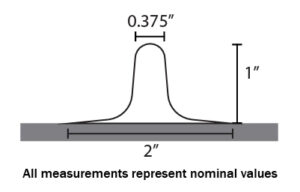

	TC1-1	1" Tee Cleat - Nitrile	Cleat

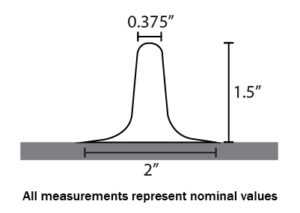

	TC105-1	1-1/2" Tee Cleat - Nitrile	Cleat
	TC2-1	2" Tee Cleat - Nitrile	Cleat

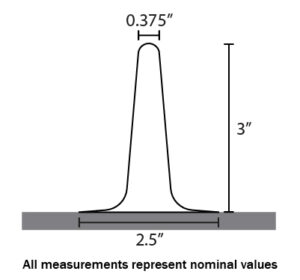

	TC3-1	3" Tee Cleat - Nitrile	Cleat

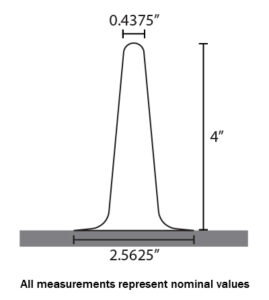

	TC4-1	4" Tee Cleat - Nitrile	Cleat
