Part #: 3-1530

Part Number: 3-1530

Description: P2G Mono-Tote 8M/GP/BP
Color : Green
Plies: 2

Nominal OAG:

0.11

 +/-

0.015
Fabric:
Monofilament

Top Surface:

Longitudinal Groove

Bottom Surface:

Bare
Compound:
PVC
Work Tension:
100

Elongation:

Less than 1%

Weight:

0.053

Minimum Pulley Diameter:

1.5

Back Flex Min. Pulley Diameter:

2.25

Working Temperature:

20 to 180

Max. Stocked Width:

78.75
Attributes: Cross Rigid, Sliderbed Suitable

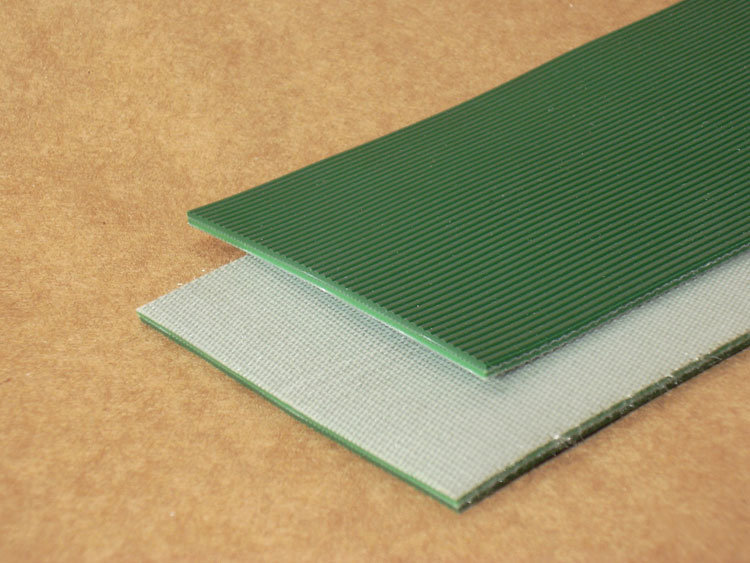

791_photo.jpg 791_photo1.jpg
1 of 3 3-1530 Close Up

Related Documents

Features:

This belt features an exceptionally soft compound with molded grooves that self clean when going around pulleys. The monofilament carcass insures a flat performing belt. P2G Mono-Tote-G 8M/GP/BP has been a leader in the movement of totes and letters in the Post Office. It is also recommended to move any product where a sticky surface is needed. It can also be used on strapping machines.

Fabrications for Belt Specification

Image Fabrication Description Fabrication Type

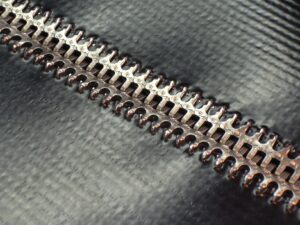

Fabrication A1 A1 Alligator Laced One End Lacing
Fabrication A2 A2 Alligator Laced Both Ends Lacing

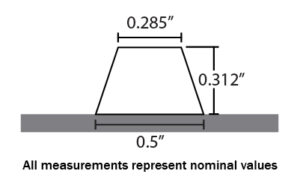

Fabrication AC-3 AC-3 A Section Cleat - PVC Cleat
Fabrication AV-3 AV-3 A Section V-Guide - PVC V-Guide
Fabrication AVN-3 AVN-3 A Section V-Guide Notched - PVC V-Guide
Fabrication BV-3 BV-3 B Section V-Guide - PVC V-Guide

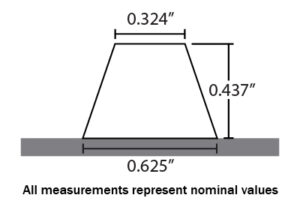

Fabrication BVN-3 BVN-3 B Section V-Guide Notched - PVC V-Guide
Fabrication C1 C1 Clipper Laced One End Lacing

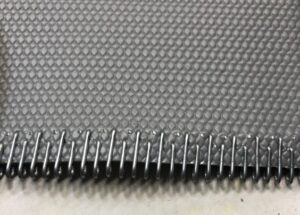

Fabrication C2 C2 Clipper Laced Both Ends Lacing
Fabrication CSU1 CSU1 Coated Steel Unibar One End Lacing

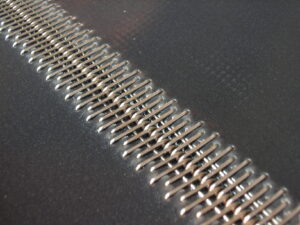

Fabrication CSU2 CSU2 Coated Steel Unibar Both Ends Lacing

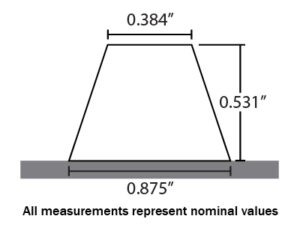

Fabrication CV-3 CV-3 C Section V-Guide - PVC V-Guide
Fabrication CVN-3 CVN-3 C Section V-Guide Notched - PVC V-Guide
Fabrication E-C E-C Endless – Finger Splice Endless
No image HP Hole Punch Hole Punch

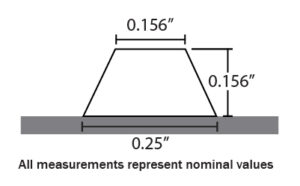

Fabrication K6V-3 K6V-3 K6 Section V-Guide - PVC V-Guide
Fabrication K6VN-3 K6VN-3 K6 Section V-Guide Notched - PVC V-Guide
Fabrication K8V-3 K8V-3 K8 Section V-Guide - PVC V-Guide
Fabrication K8VN-3 K8VN-3 K8 Section V-Guide Notched - PVC V-Guide
Fabrication OC-3 OC-3 O Section Cleat - PVC Cleat

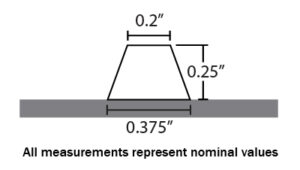

Fabrication OV-3 OV-3 O Section V-Guide - PVC V-Guide
Fabrication OVN-3 OVN-3 O Section V-Guide Notched - PVC V-Guide
Fabrication P1 P1 Plastic Rivet Laced One End Lacing
Fabrication P2 P2 Plastic Rivet Laced Both Ends Lacing
No image PE-E Prepared Ends - Finger Splice Endless

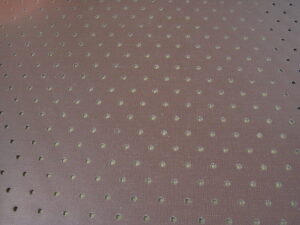

Fabrication Perforation Perforation Perforation Hole Punch
Fabrication RSSC1 RSSC1 S/S Clipper Laced One End - Recessed Lacing
Fabrication RSSC2 RSSC2 S/S Clipper Laced Both Ends - Recessed Lacing
Fabrication S1 S1 Staple Laced One End Lacing
Fabrication S2 S2 Staple Laced Both Ends Lacing
Fabrication SL2 SL2 Spiral Laced Both Ends Lacing
Fabrication SS1 SS1 S/S Staple Laced One End Lacing
Fabrication SS2 SS2 S/S Staple Laced Both Ends Lacing
Fabrication SSA1 SSA1 S/S Alligator Laced One End Lacing
Fabrication SSA2 SSA2 S/S Alligator Laced Both Ends Lacing
Fabrication SSC1 SSC1 S/S Clipper Laced One End Lacing
Fabrication SSC2 SSC2 S/S Clipper Laced Both Ends Lacing
Fabrication SSU1 SSU1 S/S Unibar One End Lacing
Fabrication SSU2 SSU2 S/S Unibar Both Ends Lacing
Download Spec Page

Part Number: 3-1530

Description: P2G Mono-Tote 8M/GP/BP
Color : Green
Plies: 2
Nominal OAG: 0.11″
 +/- 0.015″
Fabric: Monofilament
Top Surface: Longitudinal Groove
Bottom Surface: Bare
Compound: PVC
Chemical Resistance Chart
Work Tension: 100 lbs./PIW
Elongation: Less than 1%
Weight: 0.053 lbs./PIW
Lacing Selection Chart
Minimum Pulley Diameter: 1.5″
Back Flex Min. Pulley Diameter: 2.25″
Profile Min. Pulley Diameter Chart
Working Temperature (F): 20 to 180
Stock Width: 78.75″
Attributes: Cross Rigid, Sliderbed Suitable
MinPulleyChart: 0
3-1530 Close Up
Duration: [00:30]
Belt Guts – Anatomy of a Belt
Duration: [04:24]
Judging A Belt By Its Cover
Duration: [04:41]
Features:

This belt features an exceptionally soft compound with molded grooves that self clean when going around pulleys. The monofilament carcass insures a flat performing belt. P2G Mono-Tote-G 8M/GP/BP has been a leader in the movement of totes and letters in the Post Office. It is also recommended to move any product where a sticky surface is needed. It can also be used on strapping machines.
