Part #: 4-4002

Part Number: 4-4002

Description:

150 1/32 X Bare

Color:

Black

Plies:

Nominal OAG:

0.125

+/-

0.02

Fabric:

Polyester

Top Surface:

1/32″ SBR Cover

Top Cover Thickness:

0.0312

Bottom Surface:

Bare

Compound:

SBR

Work Tension:

150

Elongation:

Less than 2%

Weight:

0.08

Minimum Pulley Diameter:

Back Flex Min. Pulley Diameter:

Working Temperature:

-20 to 250

Max. Stocked Width:

Attributes: Sliderbed Suitable, Troughable

1 of 3

4-4002 Close Up

Features:

4-4002 features an abrasion-resistant cover designed for light-duty general-purpose conveying. Its durable surface provides reliable wear performance while maintaining flexibility for a wide range of conveyor configurations.

150 1/32″ x Bare is widely used in agricultural applications, where light materials and packaged goods need to be moved efficiently without marking or slipping. It is also used in the airline industry for baggage and parcel handling, as well as in various packaging operations. The belt’s construction makes it an excellent choice for rubber fabrication, where consistent traction and a stable cutting surface are beneficial.

Image	Fabrication	Description	Fabrication Type
	45CHEV05-2	45 Degree Chevron - 1/2" x 1/2" Lug - SBR	Chevron
	90CHEV05-2	90 Degree Chevron - 1/2" x 1/2" Lug - SBR	Chevron
	90CHEV1-2	90 Degree Chevron - 1" x 1" Lug - SBR	Chevron
	90SM12-2	90 Degree Scrap Metal Chevron - 1" x 2" - SBR	Chevron
	A1	Alligator Laced One End	Lacing
	A2	Alligator Laced Both Ends	Lacing
	AC-2	A Section Cleat - SBR	Cleat
	AV-2	A Section V-Guide - SBR	V-Guide
	AVN-2	A Section V-Guide Notched - SBR	V-Guide
	B-1	2 Hole Bucket Punch (B-1)	Hole Punch
	B-2	3 Hole Bucket Punch (B-2)	Hole Punch
	B-3	4 Hole Bucket Punch (B-3)	Hole Punch
	B-4	5 Hole Bucket Punch (B-4)	Hole Punch
	B-5	6 Hole Bucket Punch (B-5)	Hole Punch
	B-6	5 Hole Bucket Punch (B-6)	Hole Punch
	B-7	7 Hole Bucket Punch (B-7)	Hole Punch
	B-8	9 Hole Bucket Punch (B-8)	Hole Punch
	BC-2	B Section Cleat - SBR	Cleat
	BC1-2	1" Beefy Cleat - SBR	Cleat
	BC2-2	2" Beefy Cleat - SBR	Cleat
	BC3-2	3" Beefy Cleat - SBR	Cleat
	BC4-2	4" Beefy Cleat - SBR	Cleat
	BC4-7	4" Beefy Cleat - MOR	Cleat
	BV-2	B Section V-Guide - SBR	V-Guide
	BVN-2	B Section V-Guide Notched - SBR	V-Guide
	C1	Clipper Laced One End	Lacing
	C2	Clipper Laced Both Ends	Lacing
	CC-2	C Section Cleat - SBR	Cleat
	CFC2	Clipper Laced Both Ends – Cover Flap	Lacing
	CFS2	Staple Laced Both Ends – Cover Flap	Lacing
	CFSS2	S/S Staple Laced Both Ends – Cover Flap	Lacing
	CFSSC2	S/S Clipper Laced Both Ends – Cover Flap	Lacing
	CFSSU2	S/S Unibar Both Ends – Cover Flap	Lacing
	CSU2	Coated Steel Unibar Both Ends	Lacing
	CV-2	C Section V-Guide - SBR	V-Guide
	CVN-2	C Section V-Guide Notched - SBR	V-Guide
	DV-2	D Section V-Guide - SBR	V-Guide
	DVN-2	D Section V-Guide Notched - SBR	V-Guide
	E-A	Endless - Lap Splice	Endless
	FH1	Flexco Hinge Laced One End	Lacing
	FH2	Flexco Hinge Laced Both Ends	Lacing
	FLG05-2	1/2" High Flange - SBR	Flange
	FLG05S-2	1/2" High Siped Flange - SBR	Flange
	FLG1-2	1" High Flange - SBR	Flange
	FLG105-2	1-1/2" High Flange - SBR	Flange
	FLG105S-2	1-1/2" High Siped Flange - SBR	Flange
	FLG1S-2	1" High Siped Flange - SBR	Flange
No image	FR1	Flexco Rivet Laced One End	Lacing
No image	FR2	Flexco Rivet Laced Both Ends	Lacing
No image	HLA2	Alligator Laced Both Ends – Hidden Lace	Lacing
No image	HLC2	Clipper Laced Both Ends – Hidden Lace	Lacing
	HLCSU2	Coated Steel Unibar Both Ends – Hidden Lace	Lacing
No image	HLMS2	Megalloy Staple Laced Both Ends – Hidden Lace	Lacing
No image	HLS2	Staple Laced Both Ends – Hidden Lace	Lacing
No image	HLSFH2	S/S Flexco Hinge Laced Both Ends – Hidden Laced	Lacing
No image	HLSFR2	S/S Flexco Rivet Laced Both Ends – Hidden Laced	Lacing
No image	HLSS2	S/S Staple Laced Both Ends – Hidden Lace	Lacing
No image	HLSSA2	S/S Alligator Laced Both Ends – Hidden Lace	Lacing
No image	HLSSC2	S/S Clipper Laced Both Ends – Hidden Lace	Lacing
	HLSSU2	S/S Unibar Both Ends – Hidden Lace	Lacing
No image	HP	Hole Punch	Hole Punch
	LONG - LW	Longitudinal Splice - LW	Longitudinal
	LUG0505-2	1/2" x 1/2" Lug - SBR	Cleat
	LUG11-2	1" x 1" Lug - SBR	Cleat
No image	MFH1	Megalloy Flexco Hinge Laced One End	Lacing
No image	MFH2	Megalloy Flexco Hinge Laced Both Ends	Lacing
No image	MFR1	Megalloy Flexco Rivet Laced One End	Lacing
No image	MFR2	Megalloy Flexco Rivet Laced Both Ends	Lacing
No image	MS1	Megalloy Staple Laced One End	Lacing
No image	MS2	Megalloy Staple Laced Both Ends	Lacing
	P-2	3 Hole Bucket Punch (P-2)	Hole Punch
	P-3	4 Hole Bucket Punch (P-3)	Hole Punch
	P-4	5 Hole Bucket Punch (P-4)	Hole Punch
	P-5	6 Hole Bucket Punch (P-5)	Hole Punch
	P-7	5 Hole Bucket Punch (P-7)	Hole Punch
	P-8	7 Hole Bucket Punch (P-8)	Hole Punch
	P-9	9 Hole Bucket Punch (P-9)	Hole Punch
	P2	Plastic Rivet Laced Both Ends	Lacing
No image	PE-A	Prepared Ends - Lap Splice	Endless
	Perforation	Perforation	Hole Punch
	Planer0505-2	1/2" x 1/2" Planer - SBR	Chevron
	Planer0505-7	1/2" x 1/2" Planer - MOR	Chevron
	RC1	Clipper Laced One End - Recessed	Lacing
	RC2	Clipper Laced Both Ends - Recessed	Lacing
No image	RCSU1	Coated Steel Unibar One End – Recessed	Lacing
No image	RCSU2	Coated Steel Unibar Both Ends – Recessed	Lacing
	RS2	Staple Laced Both Ends – Recessed	Lacing
	RSS1	S/S Staple Laced One End – Recessed	Lacing
No image	RSS2	S/S Staple Laced Both Ends – Recessed	Lacing
No image	RSSA1	S/S Alligator Laced One End – Recessed	Lacing
No image	RSSA2	S/S Alligator Laced Both Ends – Recessed	Lacing
	RSSC1	S/S Clipper Laced One End - Recessed	Lacing
	RSSC2	S/S Clipper Laced Both Ends - Recessed	Lacing
No image	RSSU1	S/S Unibar One End – Recessed	Lacing
No image	RSSU2	S/S Unibar Both Ends – Recessed	Lacing
	S1	Staple Laced One End	Lacing
	S2	Staple Laced Both Ends	Lacing
	SC2-2	2" Scoop Cleat - SBR	Cleat
	SC3-2	3" Scoop Cleat - SBR	Cleat
	SC4-2	4" Scoop Cleat - SBR	Cleat
No image	SFH1	S/S Flexco Hinge Laced One End	Lacing
	SFH2	S/S Flexco Hinge Laced Both Ends	Lacing
No image	SFR1	S/S Flexco Rivet Laced One End	Lacing
No image	SFR2	S/S Flexco Rivet Laced Both Ends	Lacing
	SI220	2" High Sidewall - SBR	Sidewall
	SI225	2-1/2" High Sidewall - SBR	Sidewall
	SI230	3" High Sidewall - SBR	Sidewall
	SI235	3-1/2" High Sidewall - SBR	Sidewall
	SI240	4" High Sidewall - SBR	Sidewall
	SI245	4-1/2" High Sidewall - SBR	Sidewall
	SI250	5" High Sidewall - SBR	Sidewall
	SI255	5-1/2" High Sidewall - SBR	Sidewall
	SI260	6" High Sidewall - SBR	Sidewall
	SI265	6-1/2" High Fabric Reinforced Sidewall - SBR	Sidewall
	SI270	7" High Fabric Reinforced Sidewall - SBR	Sidewall
	SI275	7-1/2" High Fabric Reinforced Sidewall - SBR	Sidewall
	SI280	8" High Fabric Reinforced Sidewall - SBR	Sidewall
	SI765	6-1/2" High Fabric Reinforced Sidewall - MOR	Sidewall
	SI770	7" High Fabric Reinforced Sidewall - MOR	Sidewall
	SI775	7-1/2" High Fabric Reinforced Sidewall - MOR	Sidewall
	SI780	8" High Fabric Reinforced Sidewall - MOR	Sidewall
	SIC305-2	3-1/2" SI Cleat - SBR	Cleat
	SIC405-2	4-1/2" SI Cleat - SBR	Cleat
	SM1020-2	1" x 2" Scrap Metal Lug - SBR	Cleat
	SS1	S/S Staple Laced One End	Lacing
	SS2	S/S Staple Laced Both Ends	Lacing
	SSA1	S/S Alligator Laced One End	Lacing
	SSA2	S/S Alligator Laced Both Ends	Lacing
	SSC2	S/S Clipper Laced Both Ends	Lacing
	SSU1	S/S Unibar One End	Lacing
	SSU2	S/S Unibar Both Ends	Lacing
	TC1-2	1" Tee Cleat - SBR	Cleat
	TC105-2	1-1/2" Tee Cleat - SBR	Cleat
	TC2-2	2" Tee Cleat - SBR	Cleat
	TC3-2	3" Tee Cleat - SBR	Cleat
	TC3-7	3" Tee Cleat - MOR	Cleat
	TC4-2	4" Tee Cleat - SBR	Cleat
	TC4-7	4" Tee Cleat - MOR	Cleat
	TC5-2	5" Tee Cleat - SBR	T-Cleat
	TC5-7	5" Tee Cleat - MOR	T-Cleat

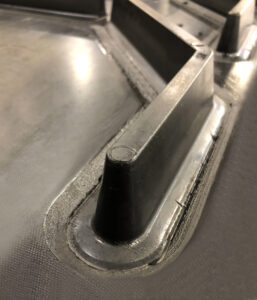

	VERSA100-2	Versa Cleat 1" - SBR	Chevron
No image	VERSA100D-2	Double Versa Cleat 1" - SBR	Chevron
